Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up

China Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up supplier
Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up supplier Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up supplier Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up supplier Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up supplier Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up supplier

Large Image :  Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up

Product Details:

Place of Origin: Dujiangyan city,Sichuan Province
Brand Name: JOINER
Certification: ISO9001:2015
Model Number: JCW 63

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Sea-worthy or export standard.
Delivery Time: 30days
Supply Ability: 500set/Year
Contact Now
Detailed Product Description
Product Name: Side Feeder Machine Screw Design: Double-screw
Application: Plastic Industry, Wood Plastic, Inflated Food, Powder Coating For What Machine: Plastic Wood Food Twin Extruder Machine
Advantage: Low Noise,Easy To Clean Up



Co-Rotating Parallel Plastic Twin Screw Extruder JCW 63 Side Feeder Machine



Production description:

Screw Diameter(mm)

62.8




Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up

L/D

8.75:1

Power(kw)

5.5

Type of drive

SEW MOTOR

Sections of Barrel

2

Center Distance(mm)

48

Output Screw Speed(rpm)

305

Load Capacity (kg/h)

≦600kg/h

Dimension

1300×650×1230(mm)(Adjustable height)

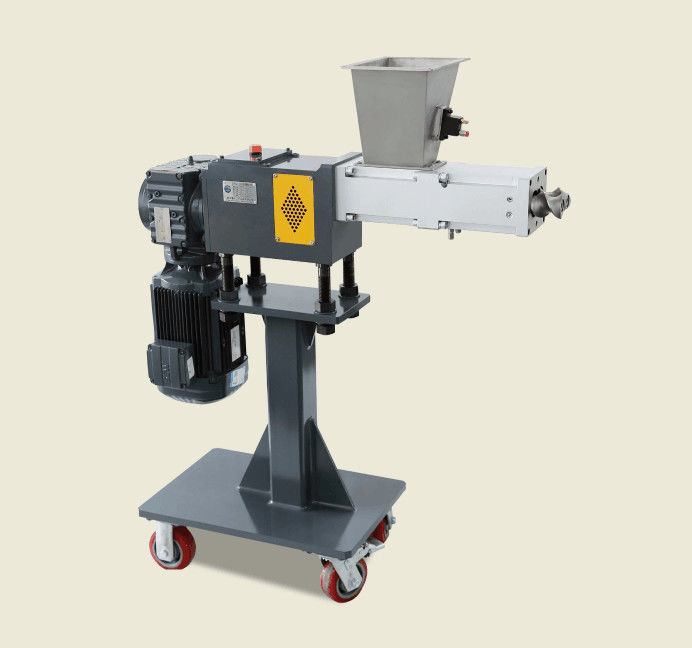

The Side Feeder is mainly including the Screw,Gearbox,Spline Housing,Stuffing Box,Hopper and Bracket.

Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up

Mark

Part Name

Qty (Pcs)

Function

1

SEW Motor

1

Driving System

2

Gearbox Section

1

Transmission System

3

Hopper

1

Feeding

4

Screw Section

2

Mixing and conveying the filler

5

Barrel Section

2

Carry the screw shaft and melt the material

6

Bracket

2

Supporting the Side Feeder



JOINER employs segmented screws with a self-wiping profile to provide optimum feeding properties for a wide range of raw materials such as fillers,fiberglass, talcum powder,calcium carbonate and most inorganic materials.




Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up



Side feeders are used for the following reasons
 Reduction of wear costs in the melting section of the main screw and barrels
 More gentle processing of fillers
 Increase in throughput
 Increase in quality through the enough fixing
 Lower the cost
Our side feeders features
 Very durable thanks to its durable integral liner inside barrels
 The tightly intermeshing co-rotating segments with various pitch have an improved conveying behaviour and ensure the precision (long GF±5%,short GF±2%) and output (caco3 550Kg/h,GF 500Kg/h)
 More human centered design,ease of operation.for example the glass window,on the splined sleeve, flat screw head ,the adjustable support and the drawer for clean up the leak

Can designed based on user requests.

Co - Rotating Parallel Twin Screw Extruder Side Feeder JCW63 Easy To Clean Up

The application of our side feeder

Our side feeders are available, both matched to almost every type of twin screw extruder.Now it has gradually replaced all the Nanjing Side feeders used for foreign customer. And there are nearly 50 sets used by Shanghai and Guangzhou Kingfa. It works successfully, and our clients are satisfied.

Through our continuous improvement, we have produced three generations of side feeder .

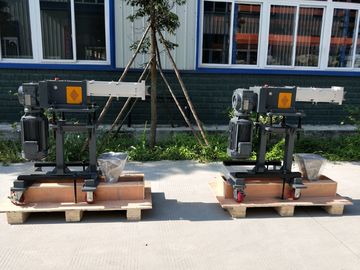

Packaging Delivery
Packaging Details: Wooden case, Sea-worthy or export standard.
Port: SHENZHEN
Lead time: 40-50 days after order confirmation.
