|Motor Power:||4.5KW||Motor Brand:||SEW|
|Length Of Screw:||450mm||Suitable For Extruder Size:||KY65 KY75|
|Feeding Capacity:||Around 100kgs/hour||Application:||Twin Screw Extruder|
|Warranty:||1 Years||After Sales Service:||Engineers Available To Service|

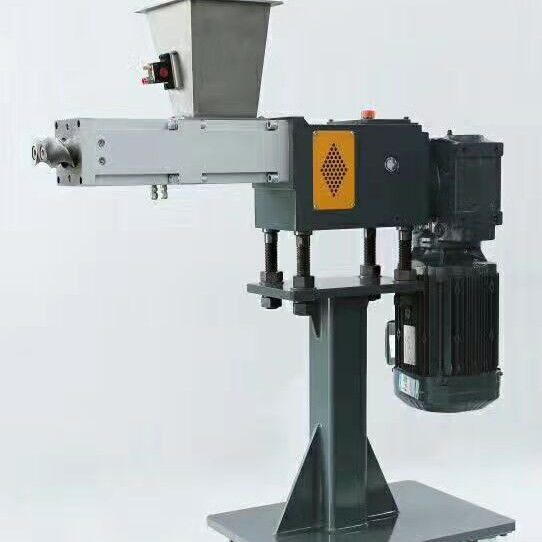

PP ABS Twin Screw Extruder Side Feeder KY75 Type machine Wood Plastic Food Plastic
CWJ58 Technical Specification
|Type of drive||SEW Motor|
|Sections of Barrel||2 Sections|
|Length of Screw||450mm|
|Output Screw Speed(rpm)||300rpm|
|Load Capacity (kg/h)||100kg/h||Dimension:
(can adjustable height)
The composents of CWJ45 Side Feeder
|1||SEW Motor||1||Driving System|
|2||Gear Box||1||Transmission System|
|4||Screw Section||2||Mixing and Conveying the filler|
|5||Barrel Section||2||Carry the screw shaft and melt the material|
|6||Bracket||2||Supporting the side feeder|
Basic information about our products.
JOINER employs segmented screws with a selfwiping profile to provide poptimum feeding properties for a wide range of raw materials such as fillers,fiberglass, talcum powder,calcium carbonate and carbonate and most inorganic materials.
Side feeders are used for the following reasons:
1· Reduction of wear costs in the melting section of the main screw and barrels
2· More gentle processing of fillers
3· Increase in throughput
4· Increase in quality through the enough fixing
5· Lower the cost
Our side feeders features :
1· Very durable thanks to its durable integral liner inside barrels
2· The tightly intermeshing co-rotating segments with various pitch have an improved conveying behaviour and ensure the precision (long GF±5%,short GF±2%) and output (caco3 550Kg/h,GF 500Kg/h)
3· More human centered design,ease of operation.for example the glass window,on the splined sleeve, flat screw head ,the adjustable support and the drawer for clean up the leak .Can designed based on user requests.
All Joiner Screw elements are manufactured using only top quality wear and corrosion resistant steels.
Tooling steel,Nitriding, stainless steels and alloys or specially imported treated materials are all available
depending on the customers specific requirements.
Side Feeder for
- W&P: ZSK-MC - Berstorff: ZE
- Leistritz:ZSE -MICRO
- Theysohn: TSK - Maris:TM-W
- APV:MP65 - JSW:TEX
- SM:TEK-HS - Feddem: FED-MTS
- Fessia Macross: NRII - TOSHIBA: TEM
- Labtech: LTE -USEON:TDS
- SHIZHOU:MTE -KEYA,LANTAI
Packing and Delivery
Packing Details : Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts
Delivery Details : Standard export packing
Delivery Time: Shipped in 45 days after payment for Side Feeder.
