| Place of Origin: | Sichuan, China |
| Brand Name: | JOINER |
| Certification: | ISO9001:2015 |
| Model Number: | As request |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 pcs/year |
| Product Name: | Screw Barrel Of Twin Screw Extruder | Material: | Ni60 Nickel Base Alloy,WR13,WR14,6542 |
|---|---|---|---|
| Screw Design: | Double-Screw | Application Machine: | Twin Screw Extruder |
| Certification: | ISO9001:2015 | Warranty: | 6 Months |
| Standard: | DIN, GB, Etc. | Technics: | CNC Machining |
| High Light: | Precision Round Twin Screw Extruder Barrel,CNC Machining Twin Screw Extruder Barrel,Closed Extruder Screw Barrel |
||

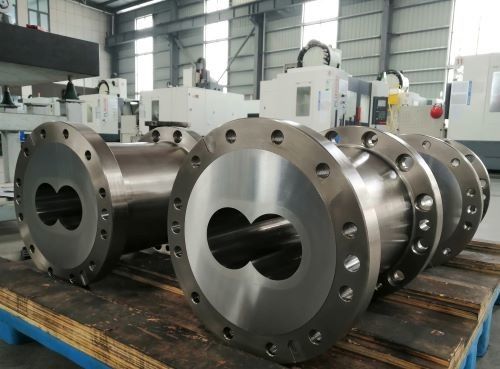

CNC Machining Precision Round Shape Durable Twin Screw Extruder Closed And Open Type Barrel
1. Introduction of barrels:
Barrels are used as an important part for extruder accessory. It is widely used in food and feed industry. At present, there are mainly two types bulking machines. They are twin screw extrusion bulking machine and single screw bulking machine. The basic combination is according to customers' needs. Due to production requirements, the diameter of the barrel is larger.
2. Standard Barrel Parameter:
|
Standard Barrel Parameter Table (selection table) |
|||
| Model | Size(mm) W.H.L |
Hole Diameter(mm) | Inner Distance(mm) |
| JN-20 | 115.105.132 | Φ23 | 18.4 |
| JN-30 | 135.115.120 | Φ30.6 | 26 |
| JN-35 | 140.120.140 | Φ36 | 30 |
| JN-36 | 160.140.150 | Φ36 | 30 |
| JN-40 | 175.145.160 | Φ41.6 | 34.5 |
| JN-50 | 190.150.190 | Φ51 | 42 |
| JN-52 | 200.155.210 | Φ52 | 43 |
| JN-53 | 210.160.220 | Φ53.3 | 48 |
| JN-58 | 220.175.240 | Φ58 | 48 |
| JN-60 | 210.170.240 | Φ60 | 52 |
| JN-65 | 210.170.240 | Φ63 | 52 |
| JN-75 | 260.200.290 | Φ71.8 | 60 |
| JN-85 | 280.215.320 | Φ81.9 | 67.8 |
| JN-92 | 310.240.360 | Φ92 | 78 |
| JN-95 | 310.240.360 | Φ94 | 78 |
| JN-110 | 330.240.420 | Φ109 | 91.5 |
| JN-125 | 390.290.500 | Φ125 | 98 |
| JN-135 | 370.300.410 | Φ134 | 110 |
3. Range of work: Diameter of 15.6mm-400mm and over
4. Types of Barrels:
5. Materials:
6. Our services
We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.
| 24-hour Hotline | Pre-sales Consultation | After-sales Services |
| No matter when and where to call we can find our service to you. | Whether you have any question can be solved through online communication. Welcome your consultation. |
Having any questions about the products, please contact with us and we will help you deal with them the first time to your satisfaction. |
7. Products:
