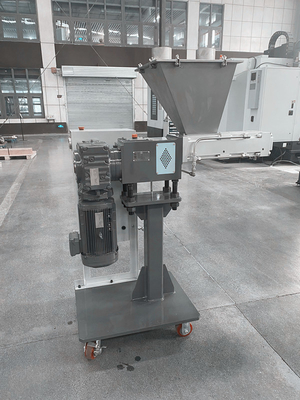

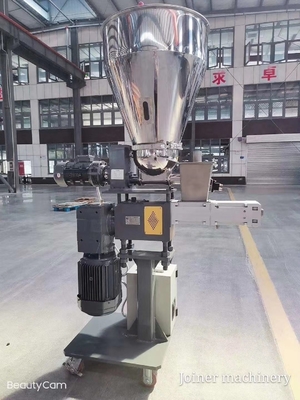

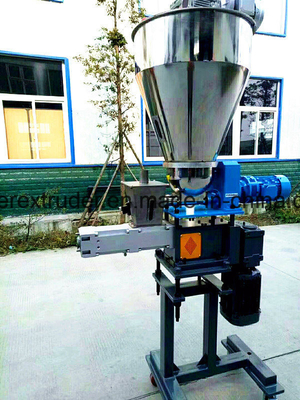

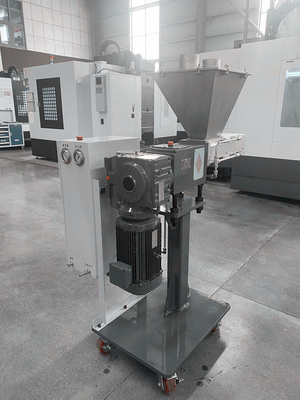

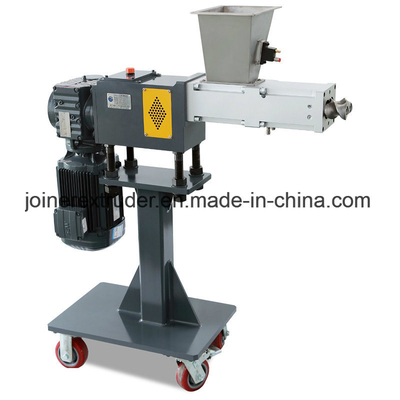

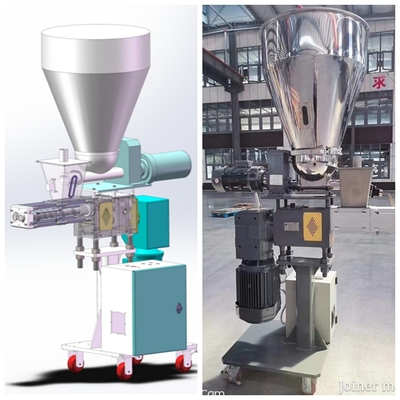

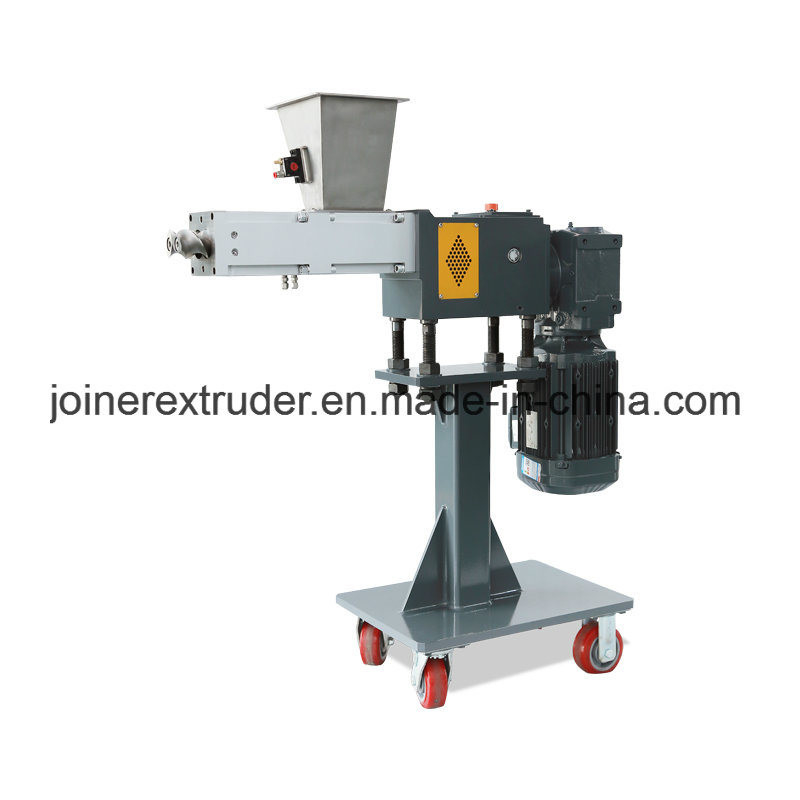

Twin Screw Extruder Degassing Side Feeder for Petrochemical Factory

Degassing Side Feeder is used to enhance feeding

1. Introduction:

In the feeding process of powder, fiber and other loose materials, because these materials contain a lot of air, it is easy to produce blockage when using the side feeder to feed the main machine, and reduce the feeding capacity. In order to enhance the feeding capacity, it is necessary to eliminate the gas contained in the material, gas-solid separation, reduce the obstruction of gas, so that the feeding is more smooth, so as to improve the feeding capacity, and promote the stable operation of the host machine.


​

2. Application:

Suitable for double screw mixing field to add all kinds of organic/inorganic fillers, reinforcing agent, such as mineral powder (calcium carbonate, talcum powder), wood powder, fiber, feather, thin sheet and other forms of loose materials.

3. Component:

Item	Part name	Qty	Unit	Function
1	SEW Motor	1	pc	Driving System
2	Gearbox Section	1	pc	Transmission System
3	Hopper	1	pc	Feeding
4	Screw Section	2	pcs	Mixing and conveying the filler
5	Barrel Section	2	pcs	Carry the screw shaft and melt the material
6	Bracket	1	set	Supporting the Side Feeder
7	Electric control cabinet	1	set	Controlling the machine

4. Structure features:

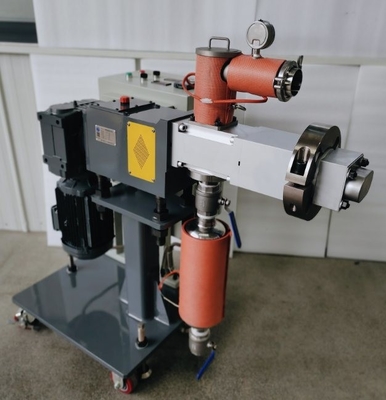

Two-stage cylinder, block type conjugate double helix propulsion, cylinder can be equipped with cooling channel;The gas-solid separation section is connected with the vacuum system and the backblowing compression-shrinkable air system.The operation control system adopts PLC+ touch screen.

5. The design principle:

We use vacuum exhaust and filtration separation technology to complete the gas-solid separation in the process of spiraling the gas-containing loose material to the main engine, so as to reduce the obstruction of gas to the transportation and avoid the reverse flow of the material, so as to achieve the purpose of enhancing the feeding.

6. Usage:

The side feeder is connected to the main extruder with flange and the open barrel of main extruder should match the side feeder as request.

The specific model is determined by the main extruder model and actual use.

7. Model:

Model	CWJ25	CWJ40	CWJ53	CWJ58	CWJ63	CWJ70
Screw diameter mm	25.4	35.5	45	58	63	70
Center distance mm	19.5	28	35.8	48	48	53.5
Screw speed rpm	Max.245	Max.300	Max.300	Max.300	Max.280	Max.280
Vacuum degree Mpa	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098

8. Packing:

We use wooden boxes to pack the machines. All of them are customized according to the size of the machine, which can effectively prevent transportation damage, and protect the products.

​

9. After sales service commitment

No.	Item	Content
1	Assurance period	The warranty period is 6 months of product operation or 12 months upon arrival at the site (whichever comes first)
2	Service guarantee	Our company guarantees that all equipment leaving the factory is produced and inspected according to relevant national standards, and unqualified equipment will never leave the factory. Ensure strict performance and fulfillment of the three guarantees for products, and strictly implement relevant national regulations on after-sales service for industrial products.
3	Response time	If a user raises quality objections or malfunctions with our company's products, the company guarantees to provide a handling opinion within 24 hours after receiving the user's objections. Our company will archive the product quality issues and handling results reported by each user.

10. FAQ

1. Q: Are you a factory or trading company?

----A: A factory

2. Q: Where is your factory located? How can I visit there?

-----A: Our factory is located in Chengdu, Sichuan Province, China. You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport. All our clients, from domestic or abroad, are warmly welcome to visit us!

3. Q: What makes you different with others?

----A: Our Excellent Service

For a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, please call me +86 19150954315, I will answer your questions immediately.

4. Q: May I know the status of my order?

----A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
