ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner

ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner

ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner
ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner
ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner
Product Details:
Place of Origin: China
Brand Name: Joiner
Certification: ISO9001 2015
Model Number: ZSE135
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case Sea-worthy or export standard
Delivery Time: 35-45 days
Supply Ability: 300m / month
Contact Now
Detailed Product Description
Material: Bimetallic Materials And Others Heat Treatment: Vacuum Quenching
Hardness: HRC58-62 Delivery Date: 30days

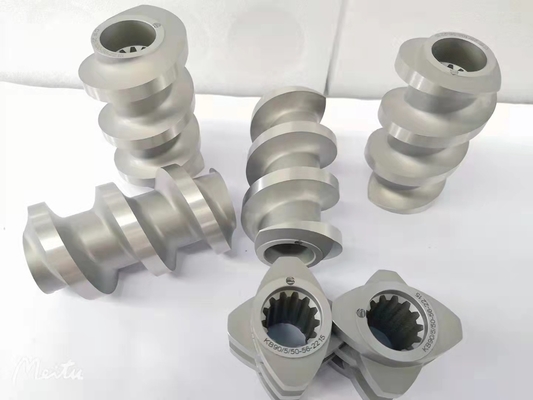

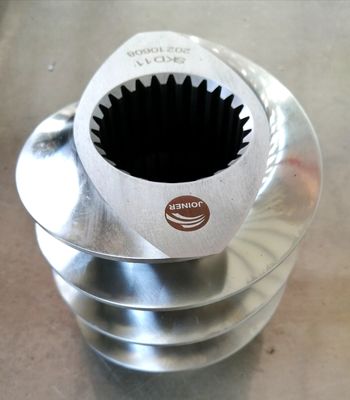

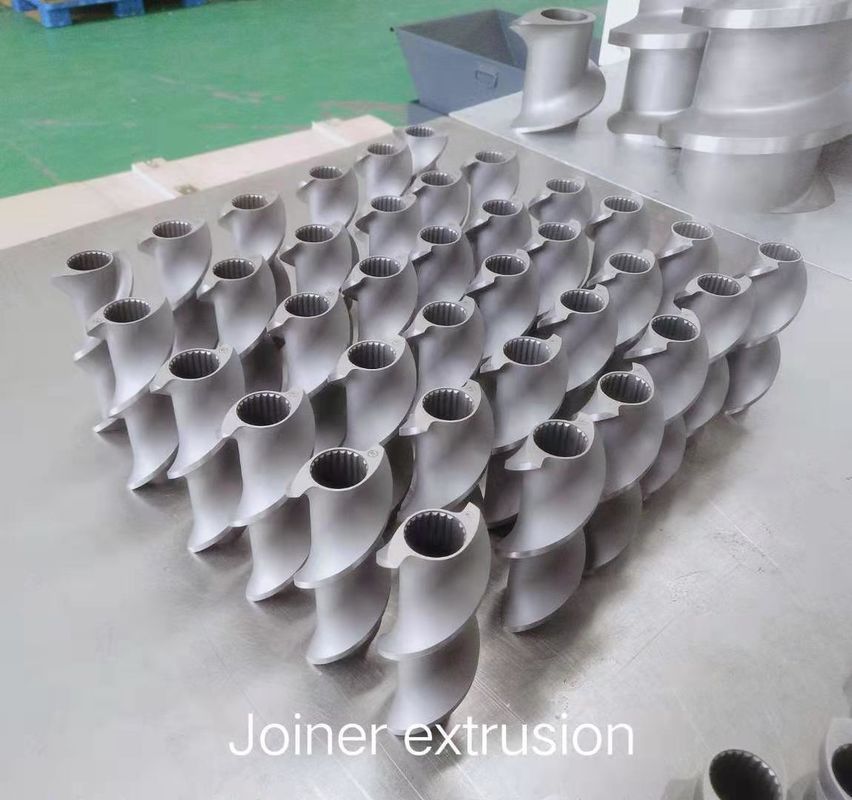

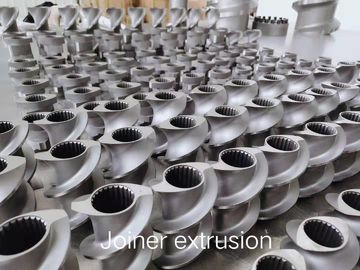

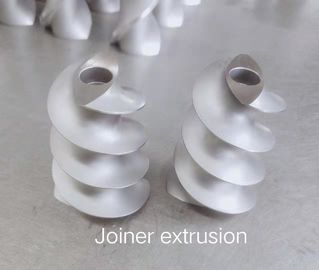

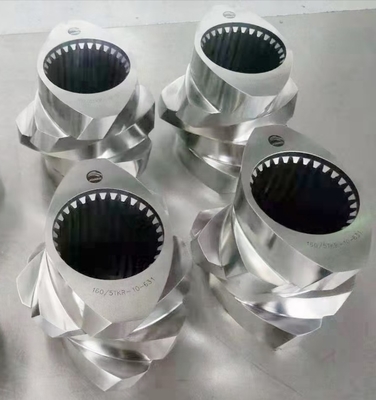

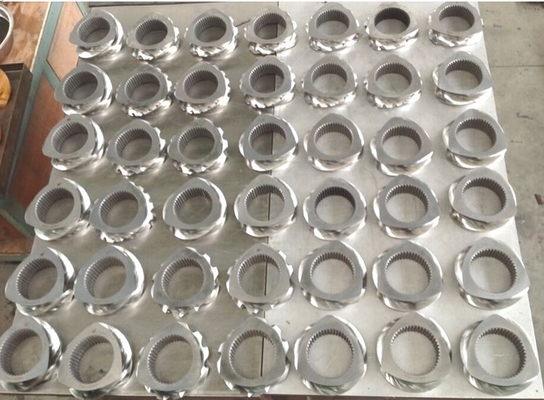

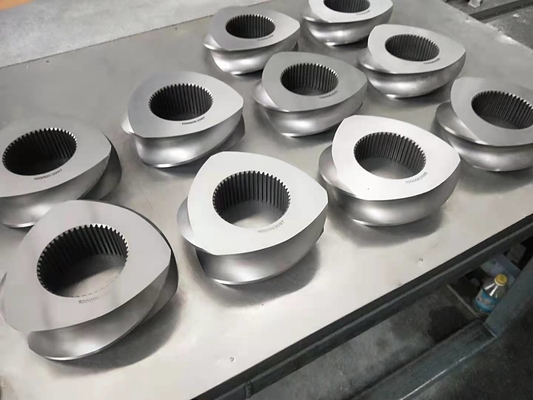

ZSE135 Convey Screw Elements for Plastic and Rubber Twin Screw Extruders



(1)Quick Details

 Screw Diameter Φ138.7mm ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner 0
 Screw Design  Double-Screw
 Hardness  58-60HRC
 Brand Name  Jioner
 Surface Treatment  Polishing/Sand Blasting
 Materials  SAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
 Place of Origin  Sichuan , China
 Warranty  1 Years
 Screw Range  Φ 15.6 - Φ 430mm



























(2)ZSE135 MAXX Convey Screw Element for



 W&P: ZSK-MC  Berstorff: ZE
 Leistritz: ZSE-MICRO  Theysohn: TSK
 Maris:TM-W  APV: MP65
 JSW: TEX  SM: TEK-HS
 Feddem: FED-MTS  Fessia Macross: NRII
 TOSHIBA: TEM  USEON: TDS
 Labtech: LTE  SHIZHOU: MTE





(3)Materials:



1. For wear application:


Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V


2. For corrision application:



Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V


3. For wear and corrision application:


PM-HIP material:SAM26 SAM39 CPM10V CPM9V


4. Other Materials:


Stainless Steel: 316L, C276 etc.





(4)ZSE135 MAXX Convey Screw Element Types of Screw Elements



Convey Screw Element           Mixing Screw Element

Transition Screw Element       Deep Groove Transfer Element

Kneading Block and disk        Screw Element for Side Feeder

1-Flighted, 2-Flighted,3-flighted Screw Elements

OEM Special Screw Elements



(5)ZSE135 MAXX Convey Screw Element Quality Control


1. Materials control:

1. All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.



2. The internal splines is checked by the spline plug to ensure interchangeability of the elements



3. All components are machined by CNC machines to ensure the shapes and tolerances of the elements



4. Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.



5. Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.



6. There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.



7. The modern management system can ensure the products 100% qualified and tracked.





2. Heat treatment by Ourself



As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of products, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.





(6) Production and Inspection of Equipment



We also have advantages in production equipment and inspection equipment.

Joiner has 70 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.





(7) ZSE135 MAXX Convey Screw Element Packing & Delivery



Delivery Details: Standard export packing



ZSE135 Convey Screw Segments for Puffed Food Industry by Joiner 1
