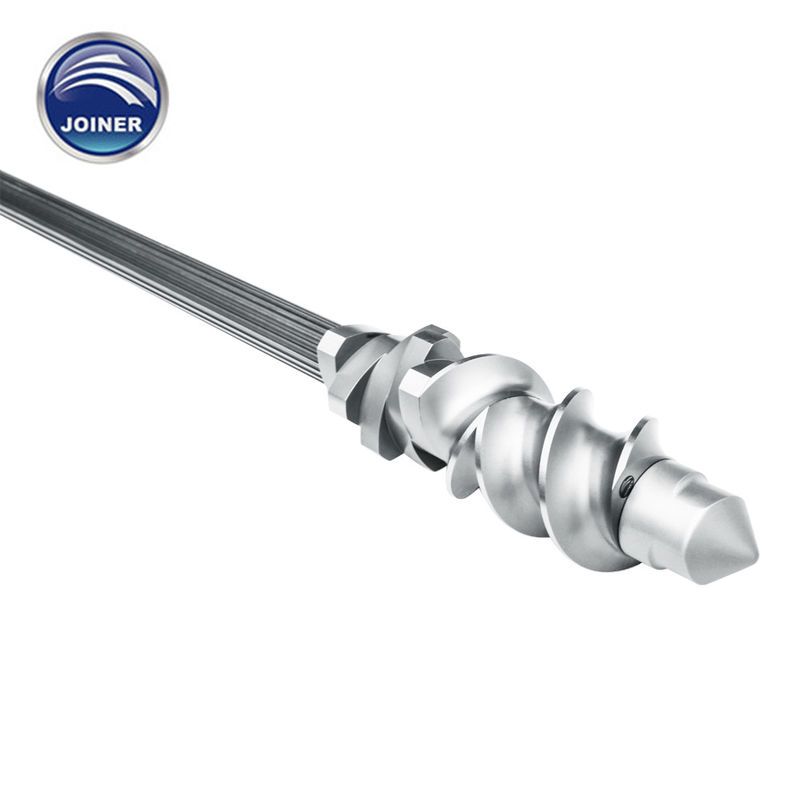

Cold Rolling Shaft For Twin Screw Extruder

Cold Rolling Shaft For Twin Screw Extruder

Cold Rolling Shaft For Twin Screw Extruder
Cold Rolling Shaft For Twin Screw Extruder
Cold Rolling Shaft For Twin Screw Extruder
Product Details:
Place of Origin: Dujiangyan city,Sichuan Province
Brand Name: JOINER
Certification: ISO9001:2015
Model Number: ZSK58
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Sea-worthy or export standard.
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/Year
Contact Now
Detailed Product Description
Product Name: Cold Rolling Shaft Material: 40CrNiMo / WR15E / WR30
Hardness: HRC44 Screw Design: Double Screw
Application Machine: Plastic Twin Screw Extruder Application: Plastic Industry, Wood Plastic, Inflated Food, Powder Coating
High Light:

involute spline shaft

,

extruder shaft

,

Shaft For Twin Screw Extruder



High Torque Strength Precision Cold Rolling Shaft For Engineering Plastic Twin Screw Extruder Machine



Product description



Product name Twin screw shaft brand name JOINER
Model number ZSK58 Material WR15E WR30 40CrNiMo
Spline type involute inner spline Place of original Sichuan, China
Size Dia 10-120mm/ L 500-900mm Screw combination Brick patern construction
Construction With or without cooling system L/D 40:1 / 44:1 / 48:1



Screw type:Double Screw

Hardness:HRC44

Surface treatment:vacuum quenching

Certification:ISO9001:2015

Application:Plastic industry Wood plastic inflated Food powder coating

For what machine:Plastic Wood Food Twin Extruder machine

cold rolling shaft for

APV                 KOBE            OMC
Buhler              KraussMaffei             Theysohn
Buss                Berstorff               Toshiba
Clextral            Labtech             USEON
Coperion          Lantai       others
JSW                 Leistritz
Keya                Maris



Types

Single Keyway             Square Keyslot

High torque key button             Dual keyslot
Involute inner spline             Round keyslot         Retackle spline

Client's requirements available



Materials:

Body:#45 steel

Liner: HIP alloy steel WR15E WR30 and 40CrNiMo



Ralloy WR15E WR30 40CrNiMo
Ralloy WR15E is a chromium-molybdenum-vanadium-slloyed steel which is characterized by: Ralloy WR30 is a high pressure nitriding iron-based Cr-Mo alloy Which is characterized by 40CrNiMo i a kind of alloy constructional steel.
Excellent tensile strength combined with good toughness Superior corrosion resistance
High thermal stability, high resistant to thermal shocks Excellent machinablity
Good high-temperature strength High dimensional stablity after heat treatment.
Good machinability and polishablity Excellent grinding and polishing ability to obtain optimal surface quality
Excellent through-hardening properties High durability by maximun hardness under static and dynamic demands
Good dimensional stability during hardening. Good wear resistance
  High temper resistance up to 500 °C



As the twin screw extruder moves toward high speed and high torque, higher requirements are placed on the strength (especially thermal strength) and accuracy of the twin screw extruder shaft, Through extensive research and painstaking research, our company adopts impots impoted pre-hard alloy tool steel from Germany. The spline processing adopts cold rolling processing of imported CNC equipment form Europe. The products have been tested by customers and fully meet the performance quality requirements of similar imported high end products.



Cold Rolling Shaft Production Equipment



Cold Rolling Shaft For Twin Screw Extruder 0





We manufacture cold rolling shaft for co-rotating twin screw extruders ranging from 15.6 mm to 350 mm and over.


Our manufacturing specializes in spare parts for twin screw extruders and is optimized for flexible order handling.



Cold Rolling Shaft For Twin Screw Extruder 1



Packaging Delivery
Packaging Details: Wooden case, Sea-worthy or export standard.
Port: SHENZHEN
Lead time: 40-50 days after order confirmation.
