|Place of Origin:||Sichuan, China|
|Model Number:||As request|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard packing (wooden box)|
|Delivery Time:||90 days|
|Supply Ability:||100 sets per year|
|Barrel Diameter:||Ø 45.5 Mm||Screw Diameter:||Ø 45mm|
|Groove Depth:||10.2 Mm||Length Of Screw:||444 Mm|
|Motor Power:||3 Kw||Reducer Ratio:||10：1|
3KW Twin Screw Extruder Side Feeder,
Modular Twin Screw Extruder Side Feeder

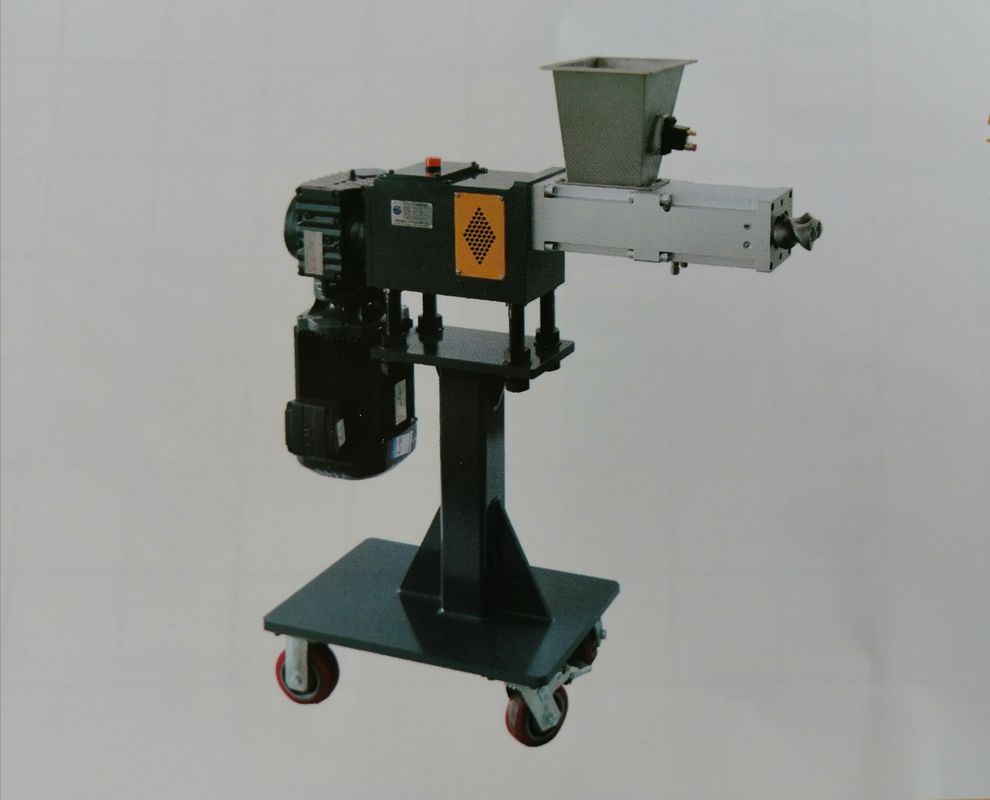

CWJ 45 Joiner Side Feeder Machine Fit For 50/52/65 Modular Twin Screw Extruders Adding Ingredients

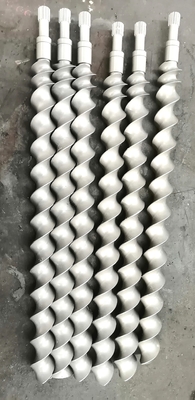

Joiner employs segmented screws with a self-wiping profile to provide optimum feeding properties for a wide range of raw materials such as fillers, fiberglass, talcum powder, calcium carbonate and most inorganic materials.
All Joiner Screw elements are manufactured using only top quality wear and corrosion resistant steels.Tooling steel, Nitriding, stainless steels and alloys or specially imported treated materials are all available depending on the customers specific requirements.
|Mark||Part Name||Qty (Pcs)||Function|
|1||SEW Motor||1||Driving System|
|2||Gearbox Section||1||Transmission System|
|4||Screw Section||2||Mixing and conveying the filler|
|5||Barrel Section||2||Carry the screw shaft and melt the material|
|6||Bracket||2||Supporting the Side Feeder|
Advantages of Joiner Extrusion Side Feeder
1. Independently develop and produce gearboxes.
1) All gearboxes are machined by gear grinding, the accuracy is up to six grades, and carburizing and hardening the tooth surface, thus ensuring that the noise of gearboxes is very low.
2) Gear casting is made of resin sand and machining center to ensure high precision.
3) the gearbox’s bearing is imported from Germany.
4) the gearbox has unique design, long life and low noise.
5) the gearbox and screw element are connected by spline sleeve, which is very convenient to disassemble
2. Barrel is made of wear resistant alloy steel and cooled by water channel.
3. Screw adopts modular screw, and the screw assembly can be adjusted according to different feeding materials to meet different feeding requirements.
Side feeders are used for the following reasons:
--reduction of wear costs in the melting section of the main screw and barrels
--More gentle processing of fillers
--Increase in throughput
--Increase in quality through the enough fixing
--Lower the cost
Our side feeders features :
1· Very durable thanks to its durable integral liner inside barrels
2·The tightly intermeshing co-rotating segments with various pitch have an improved conveying behavior and ensure the precision (long GF±5%,short GF±2%) and output (caco3 550Kg/h, GF 500Kg/h)
3·More human centered design, ease of operation, for example the glass window, on the splined sleeve, flat screw head, the adjustable support and the drawer for clean up the leak can be designed based on user requests.
Packing and Delivery
Packing Details : Standard wooden box
Delivery Time: Shipped in 90 days after payment for Side Feeder.
1. Q: Are you a factory or trading company?
----A: A factory
2. Q: Where is your factory located? How can I visit there?
-----A: Our factory is located in Chengdu, Sichuan Province, China,
You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!
3. Q: May I know the status of my order?
----A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
