Name: Andritz And BüHler Wear And Corrosion Resistance Co-Rotating Food Extruder Barrel
Brand: JOINER
SKU: Model 155
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (197 reviews)

Home Products Screw And Barrel

Andritz And BüHler Wear And Corrosion Resistance Co-Rotating Food Extruder Barrel

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	JOINER
Certification:	ISO9001:2015
Model Number:	Model 155

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Wooden box
Delivery Time:	70 days
Payment Terms:	L/C, T/T
Supply Ability:	100 pieses/month

Contact Now

Detailed Product Description

Inner Material:	X260/SAM26,etc.	Outer Material:	45#
Screw Design:	Double-Screw	Condition:	New
Certification:	ISO9001:2015	Warranty:	6 Months
Standard:	DIN, GB, Etc.	Technics:	CNC Machining
Advantage:	High Quality	Hardness:	HRC 58- 62 As General
Industry:	Food Industry	Feature:	Wear And Corrosion Resistance
High Light:	Co-Rotating Round Extruder Barrel Elements , Precision CNC Machining Extruder Barrel Elements , 12mm Extruder Barrel Elements

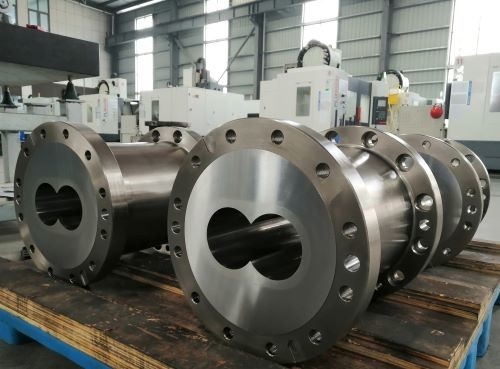

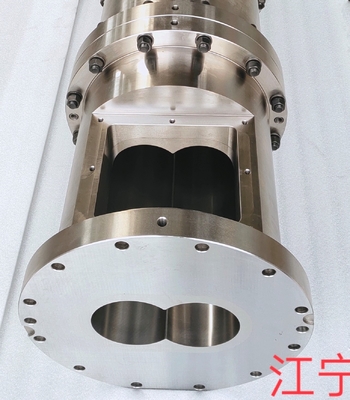

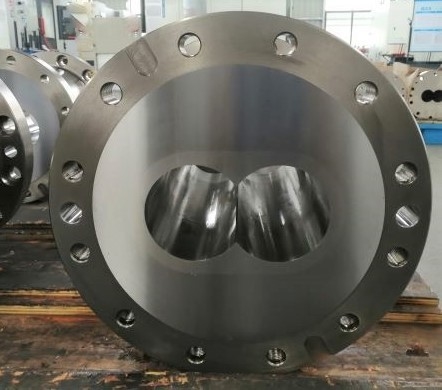

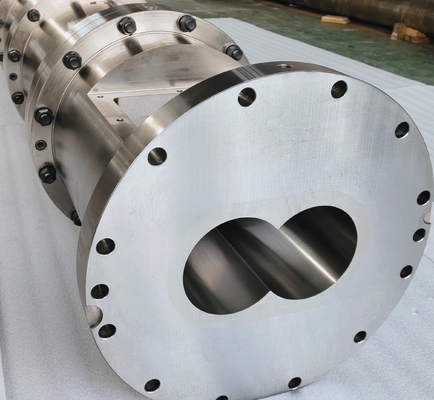

Durable Precision CNC Machining Co-Rotating Round Extruder Barrel

1. Standard Barrel Parameter :

We manufacture barrels for co-rotating twin screw extruders ranging from 15.6 mm to 400 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.

Standard Barrel Parameter Table (selection table)
Model	Size(mm) W.H.L	Hole Diameter(mm)	Center Distance(mm)
JN-20	115.105.132	Φ23	18.4
JN-30	135.115.120	Φ30.6	26
JN-35	140.120.140	Φ36	30
JN-36	160.140.150	Φ36	30
JN-40	175.145.160	Φ41.6	34.5
JN-50	190.150.190	Φ51	42
JN-52	200.155.210	Φ52	43
JN-53	210.160.220	Φ53.3	48
JN-58	220.175.240	Φ58	48
JN-60	210.170.240	Φ60	52
JN-65	210.170.240	Φ63	52
JN-75	260.200.290	Φ71.8	60
JN-85	280.215.320	Φ81.9	67.8
JN-92	310.240.360	Φ92	78
JN-95	310.240.360	Φ94	78
JN-110	330.240.420	Φ109	91.5
JN-125	390.290.500	Φ125	98
JN-135	370.300.410	Φ134	110

2. Co-rotating twin screw barrels for:

APV KOBE OMC
Buhler KraussMaffei Theysohn
Buss Berstorff Toshiba
Clextral Labtech USEON
Coperion Lantai others
JSW Leistritz
Keya Maris

3. Materials:

Barrel Body

There are three kinds of material used for barrel’s main body, they are HB01,HB02,HC01, and HB01 is popular in domestic barrel application.

Barrel Liner

We choose different kinds of materials for barrel liner according to different application.

Normally,there are two main kinds of materials,one is HIP powder tool steel,and the other is domestic steel.

4. Other types of barrels we produce

5. Professional monitoring equipment guarantee:

We have three coordinate detectors, two dimensional image measuring instruments, a metallographic analyzer, an ultrasonic flaw detector, an element analyzer and more than 10 kinds of advanced detection equipment, which guarantees its quality stability!

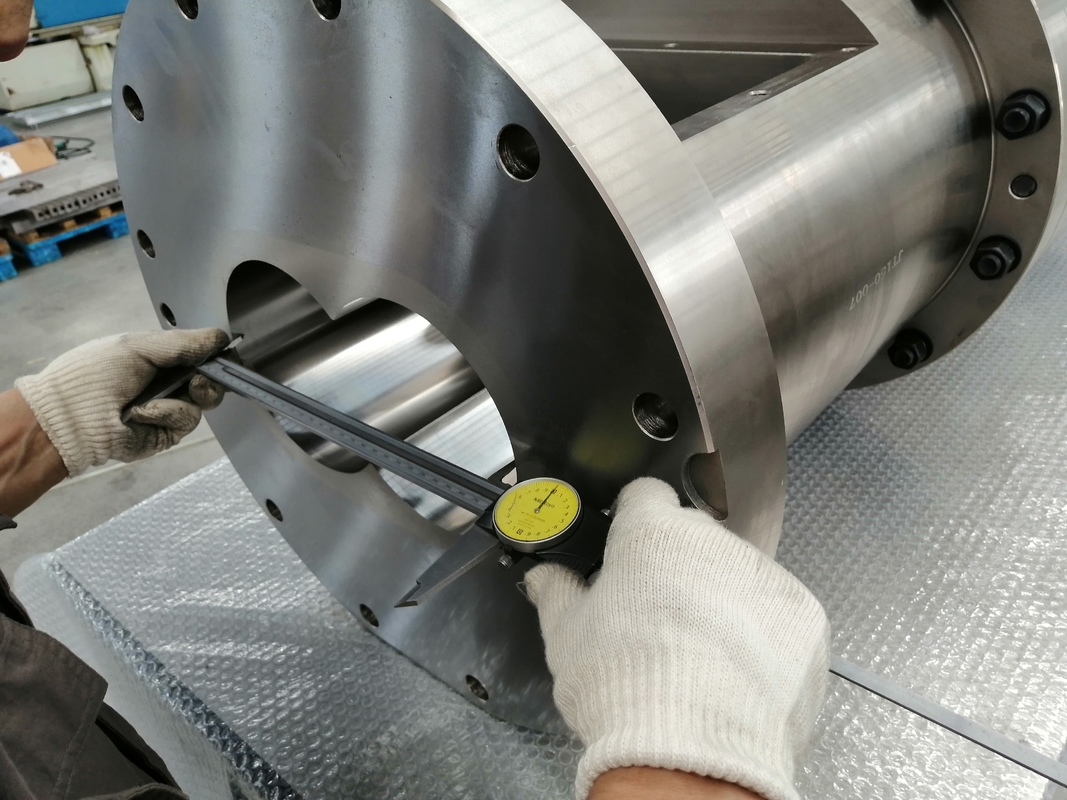

Each barrel must undergo strict ultrasonic flaw detection and three coordinate detection before leaving the factory

6. Service Network Assurance

We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.

24-hour Hotline	Pre-sales Consultation	After-sales Services
No matter when and where to call we can find our service to you.	Whether you have any question can be solved through online communication. Welcome your consultation.	Having any questions about the products, please contact with us and we will help you deal with them the first time to your satisfaction.
