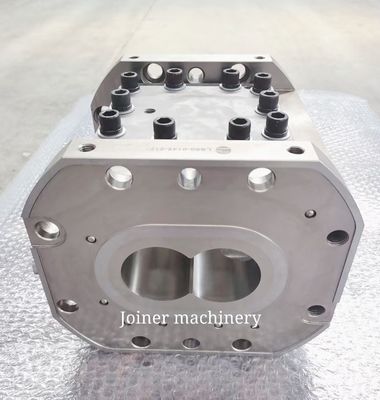

Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels

Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels

  • Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels
  • Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels
  • Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels
Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels
Product Details:
Place of Origin: Sichuan, China
Brand Name: JOINER
Certification: ISO9001:2015
Model Number: As request
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 70 days
Payment Terms: L/C, T/T
Supply Ability: 100 pieses/month
Contact Now
Detailed Product Description
Inner Material: Cr12MoV, A101, X260 ,SAM26,etc. Outer Material: 45#, 42CrMo Etc
Screw Design: Double-Screw Condition: New
Certification: ISO9001:2015 Warranty: 6 Months
Technics: CNC Machining Standard: DIN, GB, Etc.
Support: Video Technical Support Application: Twin Screw Extruder
Advantage: High Quality Structure: Body+liner
High Light:

Twin Extruder Parts Rectangular Barrel

,

CNC Machining Accuracy Twin Extruder Parts

,

Rust Proof Twin Extruder Barrel



 CNC Machining Accuracy Twin Screw Extruder Parts Rectangular Barrel



1. Brief introduction:



    Barrels are used as an important part for extruder accessory. It is widely used in various industries. Such as XPS extruder, PS granulator, PE pipe extrusion machine. Because of the difference of raw materials, the requirements for the Barrels are different. For example, when some glass fiber materials are extruded, the wear is larger and the gap between the screw and the Barrels is strictly required. the balance of wear resistance and cost is need to be taken full consideration.



    We manufacture barrels for co-rotating twin screw extruders ranging from 15.6 mm to 400 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.



2. Standard Barrel Parameter Table



Standard Barrel Parameter Table (selection table)
Model Size(mm)
W.H.L
Hole Diameter(mm) Center Distance(mm)
JN-20 115.105.132 Φ23 18.4
JN-30 135.115.120 Φ30.6 26
JN-35 140.120.140 Φ36 30
JN-36 160.140.150 Φ36 30
JN-40 175.145.160 Φ41.6 34.5
JN-50 190.150.190 Φ51 42
JN-52 200.155.210 Φ52 43
JN-53 210.160.220 Φ53.3 48
JN-58 220.175.240 Φ58 48
JN-60 210.170.240 Φ60 52
JN-65 210.170.240 Φ63 52
JN-75 260.200.290 Φ71.8 60
JN-85 280.215.320 Φ81.9 67.8
JN-92 310.240.360 Φ92 78
JN-95 310.240.360 Φ94 78
JN-110 330.240.420 Φ109 91.5
JN-125 390.290.500 Φ125 98
JN-135 370.300.410 Φ134 110



3. Other Co-rotating twin screw barrels for:



Maris KOBE Buhler
KraussMaffei Theysohn Toshiba
Buss Keya Labtech
CPM APV USEON
JSW Lantai Etc.





4. materials:



Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 0

  Barrel Body
  There are three kinds of material used for barrel’s main body, they are HB01,HB02,HC01.
  and HB01 is popular in domestic barrel application.
Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 1
 Barrel Liner
 We choose different kinds of materials for barrel liner according to different application.
 Normally,there are two main kinds of materials,one is HIP powder tool steel,and the other is domestic steel.
Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 2



5.  Example water channel



Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 3



Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 4



6. Packing Details:



    According to your order quantities and products sizes to pack:

1. Rust-proof oil processing,

2. Oiled paper packages,

3. Bubble wrap package,

4. Special foam packaging,

5. Packing,

6. Sealing.



Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 5





7. Service Network Assurance



    We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.



  • 8. Display of barrels that we produce:

Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 6



Accuracy German First-Class Brand CNC Machining Twin Screw Extruder Parts Barrels 7
