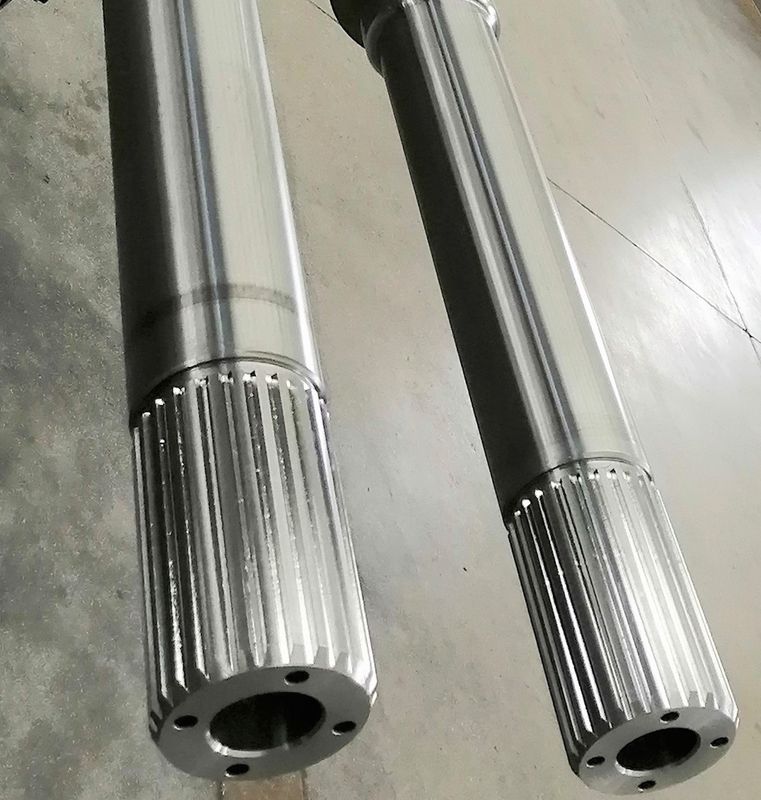

TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder

TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder

  • TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder
  • TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder
  • TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder
  • TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder
TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder
Product Details:
Place of Origin: China
Brand Name: Joiner
Certification: ISO9001
Model Number: TEX 160
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 60 days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 2500 pcs per year
Contact Now
Detailed Product Description
Material: WR15E Type Of Extrusion: Double Screw
Place Of Original: China Warranty: 6 Months
Standard: DIN, GB, Etc. Technics: Machining
Spline: Involute Spline Material Hardness: HRC38-42
High Light:

Twin Screw Shaft Diameter 39.6mm

,

Transmission Twin Screw Shaft

,

Transmission Double Extruder Shaft



Tex160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder



The transmission shaft is a rotating body with high speed and less support, so its dynamic balance is very important.



1. Introduction



Screw Design Double-Screw
Extrusion Brand JSW
Elements surface Treatment Sand blasting
Elements Flight Double flighted
Elements spline involute inner spline
Shaft spline involute spline
Application Twin screw extruder
Certification: ISO9001 2015



2. Materials:


Imported Material

WR Material

Domestic Material

1.Made in Germany
2.Made in Janpan

WR6 WR12 WR8 WR9 WR15A WR15E WR10 WR30

40CrNiMo is a kind of alloy constructional steel.



TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder 0


3. Detail introduction of some shaft materials:



WR15E WR30
Ralloy WR15E is a chromium-molybdenum-vanadium-slloyed steel which is characterized by: Ralloy WR30 is a high pressure nitriding iron-based Cr-Mo alloy Which is characterized by
- Excellent tensile strength combined with good toughness -Superior corrosion resistance
-High thermal stability, high resistant to thermal shocks -Excellent machinablity
-Good high-temperature strength -High dimensional stablity after heat treatment.
-Good machinability and polishablity -Excellent grinding and polishing ability to obtain optimal surface quality
-Excellent through-hardening properties -High durability by maximun hardness under static and dynamic demands
-Good dimensional stability during hardening. -Good wear resistance
  -High temper resistance up to 500 °C


4. Types of shaft to choose:

Single keyway / Square keyslot / High torque key button / Dual keyslot
Involute inner spline /Round keyslot / Rectangle spline / Client requirements available

TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder 1



5. Torque of spline shafts



TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder 2



6. Service Network Assurance



We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.



24-hour Hotline Pre-sales Consultation After-sales Services
No matter when and where to call we can find our service to you. Whether you have any question
can be solved through online
communication. Welcome your consultation.
Having any questions about the products, please contact with us and we will help you deal with them the first time to your satisfaction.




7. Packing Details:



According to your order quantities and products sizes to pack:

1. Rust-proof oil processing,

2. Oiled paper packages,

3. Bubble wrap package,

4. Special foam packaging,

5. Packing,

6. Sealing.



TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder 3


8. FAQ


Q: Are you trading company or manufacturer ?

A: We are factory.



Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China. You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients from domestic or abroad are warmly welcome to visit us.



Q: What is your terms of payment ?

A: 1) T/T payment; 2) L/C;



7. Products photos



TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder 4




TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder 5
