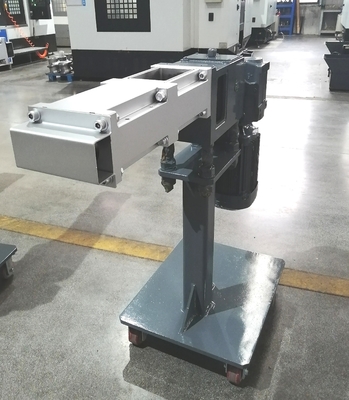

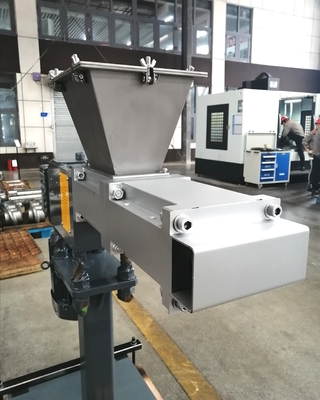

Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder

Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder

  • Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder
  • Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder
  • Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder
  • Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder
Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder
Product Details:
Place of Origin: Sichuan, China
Brand Name: Joiner
Certification: ISO9001-2015
Model Number: CWJ 70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard packing (wooden box)
Delivery Time: 60 - 90 days
Payment Terms: L/C,T/T
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Barrel Diameter: Ø 71 Mm Screw Diameter: Ø 69 Mm
Condition: New Warranty: 6 Months
Groove Depth: 17.5 Mm Length Of Screw: 426mm
L/D: 6:1 Screw Design:: Double-Screw
Motor Power: 7.5 Kw Reducer Ratio: 2.5:1
Screw Speed: 600 Rpm Center Distance: 53.5 Mm
Screw Material: Cr12MoV Barrel Material: Alloy Steel
Shaft Material: WR12 Hopper Material: 316L
Standard: GB/ DIN Etc. Producing: CNC Machining
High Light:

600rpm Twin Screw Extruder Side Feeder

,

5.5KW Twin Screw Extruder Side Feeder

,

Alloy Steel Barrel Side Feeder Extruder

Durable CWJ70 Side Feeder Machine With High Quality

Joiner employs segmented screws with a self-wiping profile to provide optimum feeding properties for a wide range of raw materials such as fillers, fiberglass, talcum powder, calcium carbonate and most inorganic materials.

1. Parameters of CWJ70 side feeder

Type CWJ70
Barrel diameter (mm) φ71
Screw diameter (mm) φ69
Groove depth (mm) 17.5
Legth of screw (mm) 426
L/D 6:1
Motor power 5.5KW
Reducer ratio 2.5:1
Screw speed (rpm) 600
Center distance (mm) 53.5
Flange connerctor size (mm)Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 0 144
90
76
13.5(M12)
φ12H7
Feeding barrel hole size (mm) 110*180
Barrel material Alloy Steel
Screw material Cr12MoV
Shaft material WR12
Hopper material 316L
Feeding capacity
(kg/h)
short glass fiber(3-6mm) ~420
1250 talcum powder grain dia. 5~30 micometer,bulk density 0.4~0.45kg/L ~440
3000 talcum powder, grain dia. 1~20 micometer,bulk density 0.3~0.35kg/L ~270
Suit for extruder 70/75



2. Machine parts:


Mark Part Name Qty (Pcs) Function
1 SEW Motor 1 Driving System
2 Gearbox Section 1 Transmission System
3 Hopper 1 Feeding
4 Screw Section 2 Mixing and conveying the filler
5 Barrel Section 2 Carry the screw shaft and melt the material
6 Bracket 2 Supporting the Side Feeder


3. Advantages of Joiner Extrusion Side Feeder

1). Independently develop and produce gearboxes.
a. All gearboxes are machined by gear grinding, the accuracy is up to six grades, and carburizing and hardening the tooth surface, thus ensuring that the noise of gearboxes is very low.
b. Gear casting is made of resin sand and machining center to ensure high precision.
c. The gearbox's bearing is imported from Germany.
d. The gearbox has unique design, long life and low noise.
e. The gearbox and screw element are connected by spline sleeve, which is very convenient to disassemble

2). Barrel is made of wear resistant alloy steel and cooled by water channel.

3). Screw adopts modular screw, and the screw assembly can be adjusted according to different feeding materials to meet different feeding requirements.

4. Side feeders are used for the following reasons:

--reduction of wear costs in the melting section of the main screw and barrels
--More gentle processing of fillers
--Increase in throughput
--Increase in quality through the enough fixing
--Lower the cost

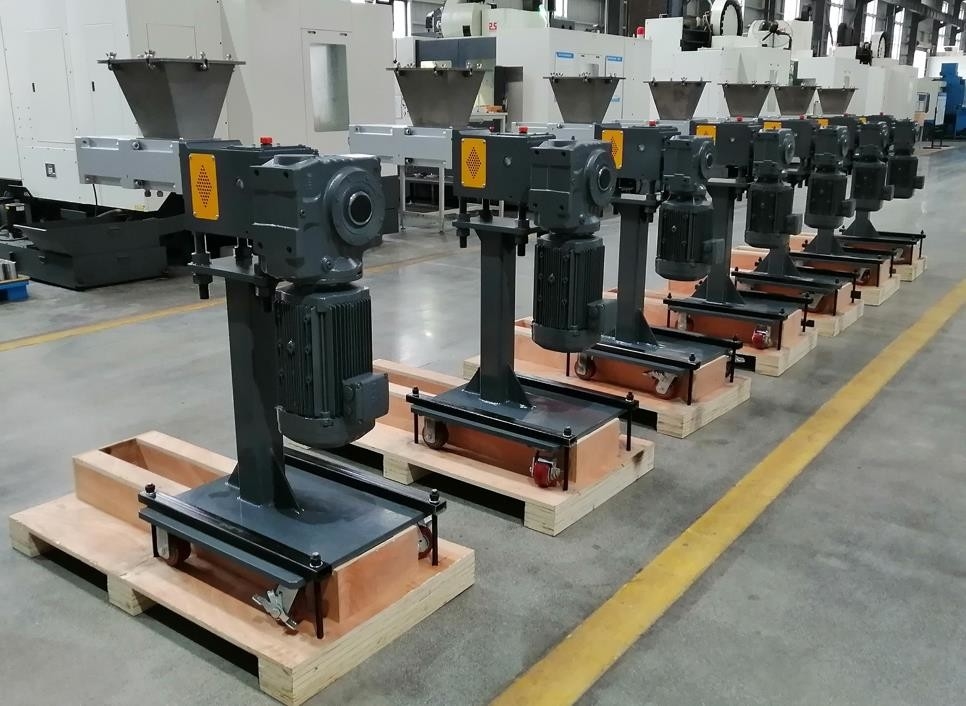

Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 1Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 2
5. Raw material guarantee

The company has been cooperating with domestic and foreign first-line brand material suppliers for a long time, and strictly inspects the factory (elemental analysis, metallographic analysis, ultrasonic flaw detection, etc.) to ensure 100% qualified.

6. Why choose us?
(1) Total solution of highly wear-resistance and corrosion-resistance problems;
(2) Expert of engineering design and consulting,
(3) Advanced manufacturing capabilities and technology,
(4) Lean production management
(5) Top quality products with high cost performance

7.Production and Inspection of Equipment

We also have advantages in production equipment and inspection equipment.
Joiner has 140 advanced equipment such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.
Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 3Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 2Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 5

Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 6



8. Quality

The quality of JOINER products is subject to internal quality control standards as well as to the quality management system ISO 9001:2000. By controls of the staff, all manufacturing steps are continuously checked. Before products leave the plant, they are subject to final quality control procedures. This is how we can guarantee quality at the highest level.



Capacity 5.5KW/7.5KW 600rpm Alloy Steel Barrel Side Feeder for Twin Screw Extruder 7


9. . FRQ


1. Q: Are you a factory or trading company?
----A: A factory

2. Q: Where is your factory located? How can I visit there?
-----A: Our factory is located in Chengdu, Sichuan Province, China,
1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!

3.Q: What makes you different with others?
----A: 1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at +86 19150954315, we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within 30 working days.
As a manufacturer, we can ensure the delivery time according to the formal contract.

4.Q: How about the delivery time?
----A: This depends on the product. Typically standard products are delivered within 60 days.

5.Q: May I know the status of my order?
--A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
