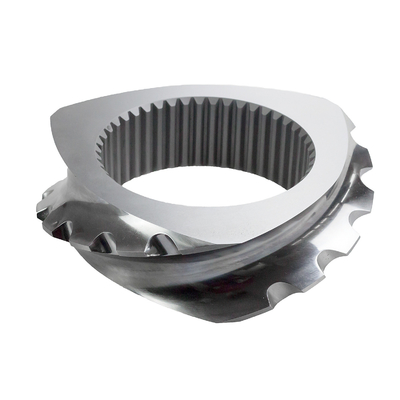

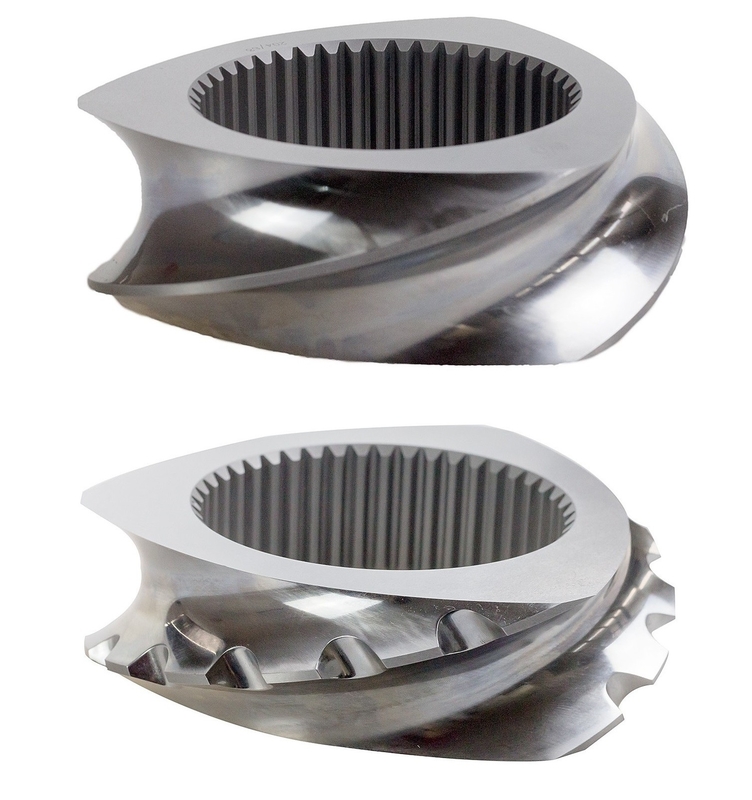

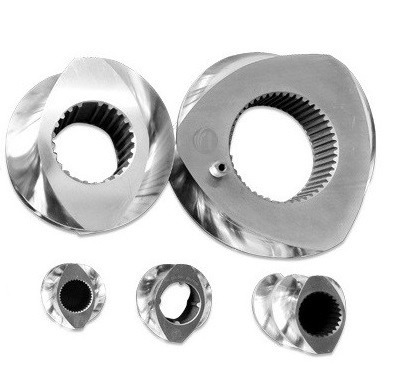

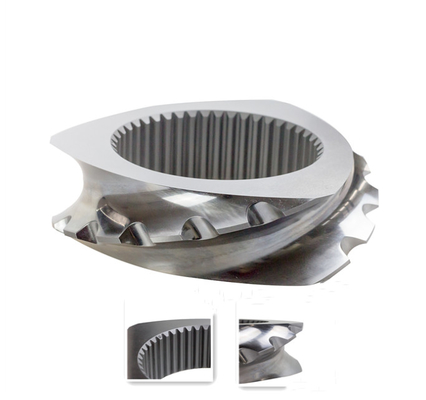

CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements

CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements

  • CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements
  • CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements
  • CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements
  • CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements
CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements
Product Details:
Place of Origin: China
Brand Name: Joiner
Certification: ISO9001 2015
Model Number: As request
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 60 days
Supply Ability: 300pieces / month
Contact Now
Detailed Product Description
Material: 41CrAlMo7 /38CrMoAla Hardness: HV950-1050 As General
Surface Treatment: Sand Blasting/ Polishing Application: Twin Screw Extruder
Heat Treatment: Vacuum Heat Treatment After Service Provided: Video Technical Support
Condition: New Warranty: 6 Months
Standards: DIN, GB, Etc. Technics: CNC Machining
High Light:

Double Screw Extruder Mixing Element

,

Extruder Mixing Element For Material Leakage

,

Nitrided Steel Extruder Screw Elements



Capacity Double Screw Extruder Mixing Element Triple Flighted For Material Leakage Without Dead Zone



1. Brife introduction:



    These screw elements are mainly used in mixing zone parts.

     - Mixing is an essential function in an extruder.The goal of mixing process in an extruder is to increase the uniformity of the composition.
     - Triple flighted screw elements with special tooth and multilobe geometry eliminate meta-radial shearand acheve efficient distributive mixing.

Name Triple Flighted Screw Elements
Diameter 15.6-400 mm
Spline Involute inner spline
Screw type Double Screw
Hardness HRC58-62
Surface treatment Vacuum quenching
Function Mixing
Certification ISO9001:2015
Application Plastic industry/ Wood industry /Food industry
All types we produce Convey Screw Segment
Mixing Screw Segment
Kneading Block Disk
Transition Screw Element
Deep groove transfer element
Screw element for side feeder
Others


2. Extruder Screw Materials:

1. For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
2. For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V
3. For wear and corrision application:
PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4. Other Materials:
Stainless Steel: 316L, C276 etc.



CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements 0


3. Making process



CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements 1



4. Quality Control

1). Materials control: All the materials are purchased from the domestic brands or European twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.
2). The internal splines is checked by the spline plug to ensure interchangeability of the elements
3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements
4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreign brands.
5). Professional technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
6). There are various prepared technical information and the fixtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.
7). The modern management system can ensure the products 100% qualified and tracked


5.  Product accuracy

There are some differences between Joiner Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.

6. Production and Inspection of Equipment

We also have advantages in production equipment and inspection equipment.
Joiner has 70 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.

7. Our services



24-hour Hotline Pre-sales Consultation After-sales Services
No matter when and where to call we can find our service to you. Whether you have any question can be solved through online communication. Welcome your consultation. Having any questions about the products, please contact with us and we will help you deal with them the first time to your satisfaction.



8. FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China, You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport. All our clients from domestic or abroad are warmly welcome to visit us.

Q: What makes you different with others?

A: 1) Our Excellent Service

For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 028 87226313, we will answer your questions immediately.

    2) Our quick manufacturing time.

For normal orders, we will promise to produce ASAP. As a manufacturer, we can ensure the delivery time according to the formal contract.

Q: What is your terms of payment ?

A: 1) T/T 2) L/C;




9. Accessories we produce:



CNC Maching 41CrAlMo7 38CrMoAla Corrosion Resistance Double Screw Extruder Machine Elements 2
