|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||wooden case Sea-worthy or export standard|
|Delivery Time:||45 days|
|Supply Ability:||300m / month|
|Material:||Tungsten Carbide||Heat Treatment:||Vacuum Quenching|
|Surface Treatment:||Sand Blast||Hardness:||HRA91.5|
|Screw Type:||Twin Screw||Application:||Twin Screw Extruder|

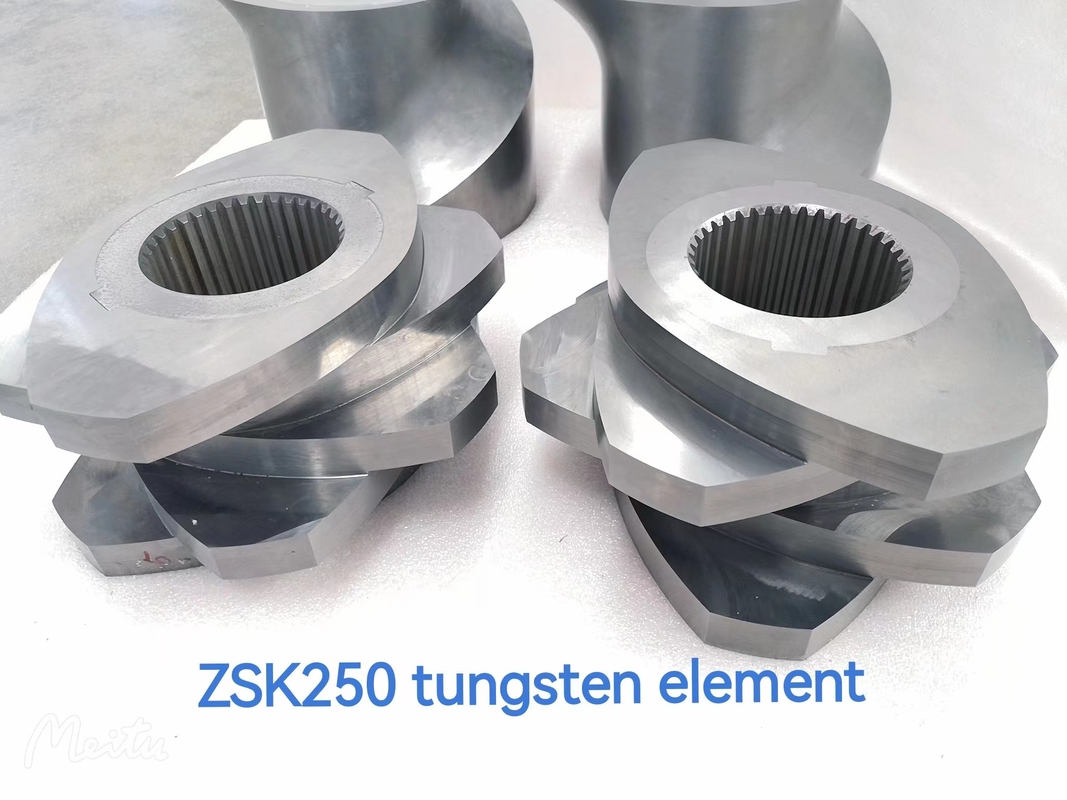

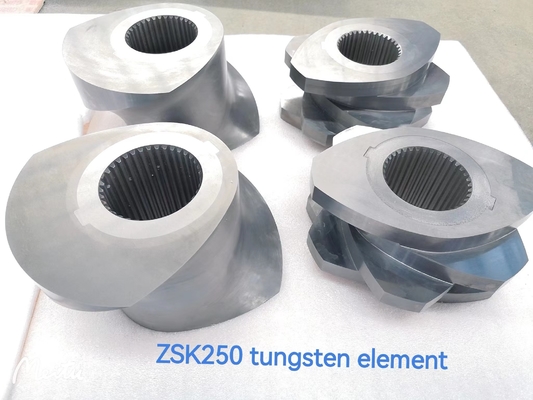

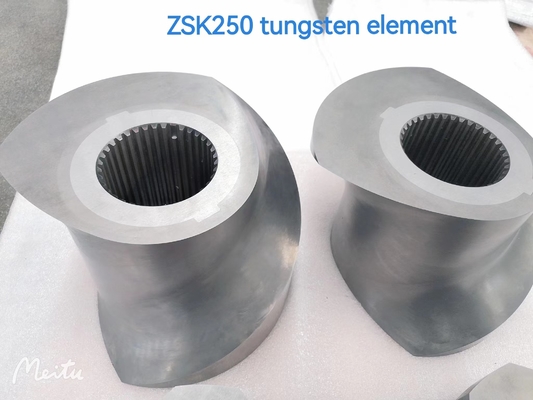

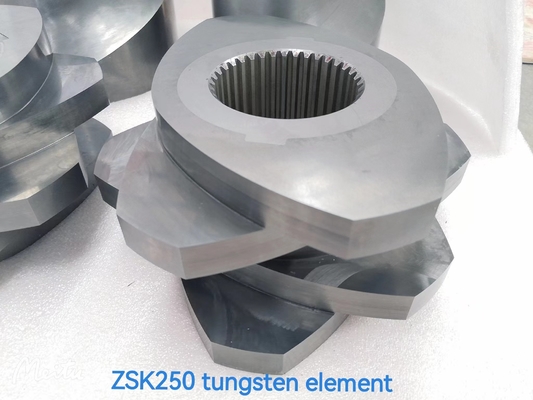

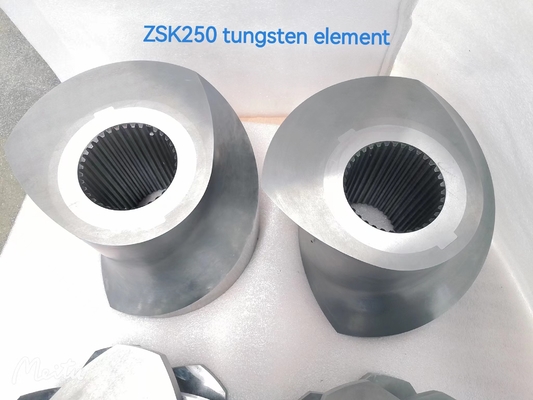

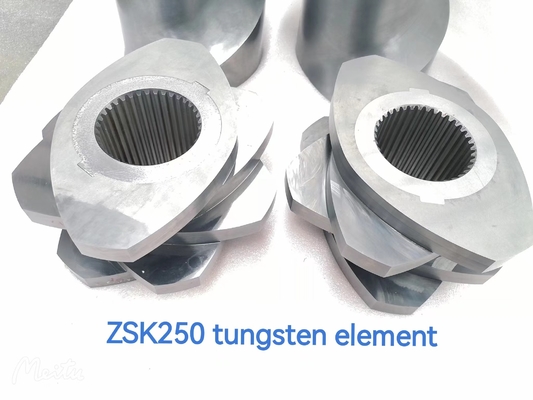

250 Anti Wear Extruder Spare Parts HV-950-1100 Hardness For fiber and cement Extruder
|Production name:||Screw element||Model Number:||250|
|Extrusion equipment:||Clextral||Material:||Tungsten Carbide|
|Place of Origin||China||Application||Twin screw extruder machine|
|Production ability||300m / Per month||Diameter||248 mm|
For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10,SAM26,SAM39,CPM10V,CPM9V
For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26,SAM39,CPM10V,CPM9V
For wear and corrision application:
Stainless Steel: 316L,904L, C276 etc.
1. Materials control
1. All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.
2. The internal splines is checked by the spline plug to ensure interchangeability of the elements
3. All components are machined by CNC machines to ensure the shapes and tolerances of the elements
4. Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.
5. Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
6. There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.
7. The modern management system can ensure the products 100% qualified and tracked.
Heat treatment by Ourself
As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of products, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.
Packing Details : Foam cotton,wooden case
Types of the Screw Segments
Convey Screw Segment
Mixing Screw Segment
Kneading Block & Disk
Transition Screw Element
Deep groove transfer element
Screw element for side feeder
1-flighted,2-flighted,3-flighted screw elements
Co-rotating twin screw elements for
-APV -KOBE -OMC
-Buhler -ICMA -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-JSW -Leistritz -Keya
A: We are a manufacturer.
A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to
A: 1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 028 87226313, we will answer your questions immediately. 2) Our quick manufacturing time For Normal orders, we will promise to produce within 30 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.
A: 1) T/T payment; 2) LC;
Contact Person: Joyce
