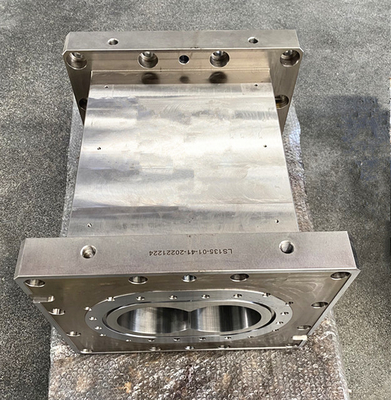

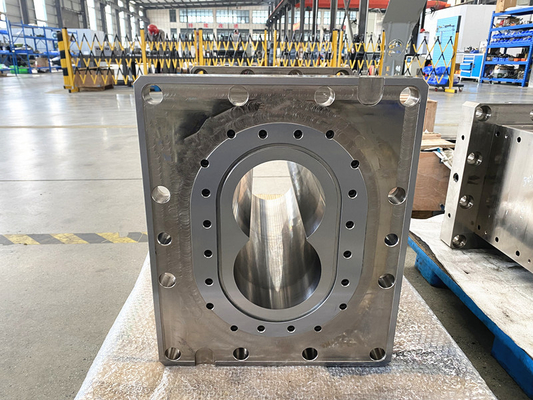

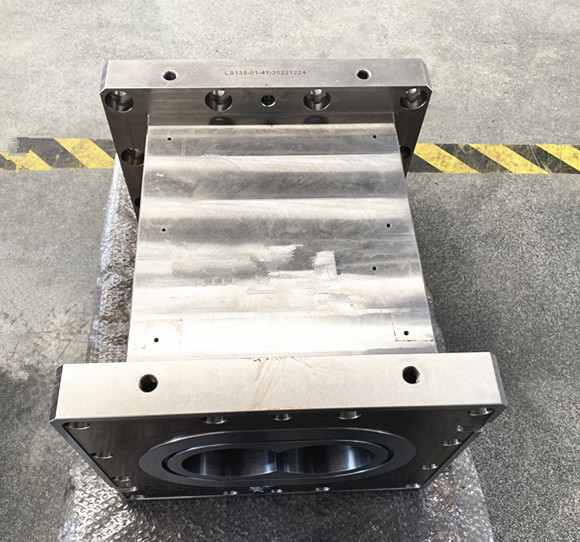

LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder

LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder

  • LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder
  • LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder
  • LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder
LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder
Product Details:
Place of Origin: Sichuan, China
Brand Name: JOINER
Certification: ISO9001:2015
Model Number: As request
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 70 days
Payment Terms: L/C, T/T
Supply Ability: 100 pieses/month
Contact Now
Detailed Product Description
Inner Material: X260/SAM26 Outer Material: 45#, 42CrMo Etc
Screw Design: Double-Screw Condition: New
Certification: ISO9001:2015 Warranty: 6 Months
Standard: DIN, GB, Etc. Technics: CNC Machining
High Light:

Twin Extruder Machine Barrel Cylinder

,

Steel Machining Extruder Barrel Cylinder

,

X260 Extruder Machine Barrel Cylinder



LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder



1. About Joiner


Our factory is state-of-the art and spans over 20,000 square meters. The factory houses more than 150 sets of different domestic and foreign high precision production equipment, with the degree of numerical control up to 95%.


2. Range of work



Diameter of 15.6mm-400mm



Standard for classification: Design geometry Standard for classification: With inner or not



3. Screw type: Double Screw



Standard Barrel Parameter Table (selection table)
Model Size(mm) W.H.L Hole Diameter(mm) Center Distance(mm)
JN-20 115.105.132 Φ23 18.4
JN-30 135.115.120 Φ30.6 26
JN-35 140.120.140 Φ36 30
JN-36 160.140.150 Φ36 30
JN-40 175.145.160 Φ41.6 34.5
JN-50 190.150.190 Φ51 42
JN-52 200.155.210 Φ52 43
JN-53 210.160.220 Φ53.3 48
JN-58 220.175.240 Φ58 48
JN-60 210.170.240 Φ60 52
JN-65 210.170.240 Φ63 52
JN-75 260.200.290 Φ71.8 60
JN-85 280.215.320 Φ81.9 67.8
JN-92 310.240.360 Φ92 78
JN-95 310.240.360 Φ94 78
JN-110 330.240.420 Φ109 91.5
JN-125 390.290.500 Φ125 98
JN-135 370.300.410 Φ134 110



4. Cooling system:



LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder 0

5. All types of barrels we produce:


  Feeding barrel

  Solid barrel
  Closed barrel

  Barrels with inners
  Vent barrel
  Combi barrel
  Extended degassing barrel
  Combi barrel with backward venting

LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder 1



6.  Materials:



Barrel Body

There are three kinds of material used for barrel’s main body, they are HB01,HB02,HC01. And HB01 is popular in domestic barrel application.



Barrel Liner
We choose different kinds of materials for barrel liner according to different application.
Normally,there are two main kinds of materials,one is HIP powder tool steel,and the other is domestic steel.

LS135 HIP Alloy Steel Machining Twin Extruder Machine Barrel Cylinder 2



7. Service Network Assurance



    We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.



8. FRQ

1. Q: Are you a factory or trading company?
    A: A factory


2. Q: Where is your factory located? How can I visit there?
    A: Our factory is located in Chengdu, Sichuan Province, China,
You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!

3.Q: What makes you different with others?
   A: Our Excellent Service
   For a quick, no hassle quote just send email to us
   We promise to reply with a price within 24 hours - sometimes even within the hour.
   If you need an advice, just call our export office at +86 028 87226313, we will answer your questions immediately.

4.Q: How about the delivery time?
   A: This depends on the product. Typically standard products are delivered within 60 days.



5.Q: What is the term of payment?
   A: 1) T/T payment; 2) L/C;


6.Q: May I know the status of my order?
   A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
