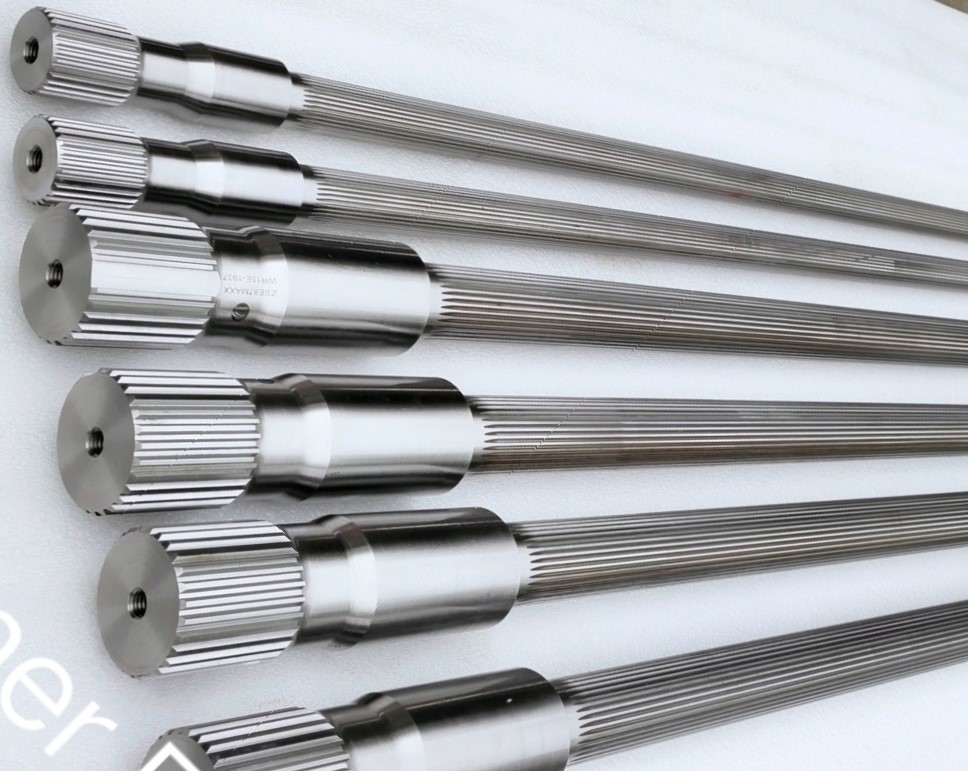

High Quality Spline Shaft For Germany Twin Screw Extruder

High Quality Spline Shaft For Germany Twin Screw Extruder

  • High Quality Spline Shaft For Germany Twin Screw Extruder
  • High Quality Spline Shaft For Germany Twin Screw Extruder
  • High Quality Spline Shaft For Germany Twin Screw Extruder
High Quality Spline Shaft For Germany Twin Screw Extruder
Product Details:
Place of Origin: China
Brand Name: Joiner
Certification: ISO9001
Model Number: As request
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 60 days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5000 pieces per year
Contact Now
Detailed Product Description
Material: 1.2343 Material Hardness: HRC 38-42
Material Source: German Type Of Extrusion: Double Screw
Place Of Original: China Type: Involute Inner Spline
Heat Treatment: Vaccum Quenching Diameter: 10-240mm
Length: 500-15000mm Standard: DIN, GB, Etc.
High Light:

Twin Screw Extruder Spline Shaft

,

1.2343 Spline Shaft

,

Extruder Spline Shaft



High Quality Spline Shaft For Germany Twin Screw Extruder



As the twin screw extruder moves toward high speed and high torque, higher requirements are placed on the strength (especially thermal strength) and accuracy of the twin screw extruder shaft, Through extensive research and painstaking research, our company adopts impots impoted pre-hard alloy tool steel from Germany. The spline processing adopts CNC equipment form Europe. The products have been tested by customers and fully meet the performance quality requirements of similar imported high end products.

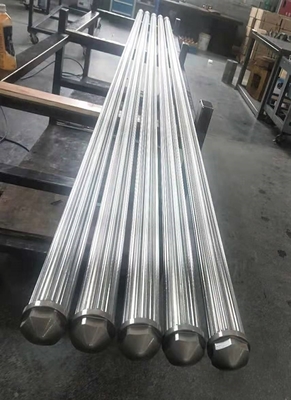

1. Structure: with cooling system/without cooling system

High Quality Spline Shaft For Germany Twin Screw Extruder 0

2. Size: Diameter 10-300mm
             Length 500-14000mm


3. Materials:

According to different process requirements, we uses different materials to meet different market needs.

Imported Material

WR Material

Domestic Material

1.Made in Germany
2.Made in Janpan

 WR6 WR12 WR8 WR9 WR15A WR15E WR10 WR30



40CrNiMoa

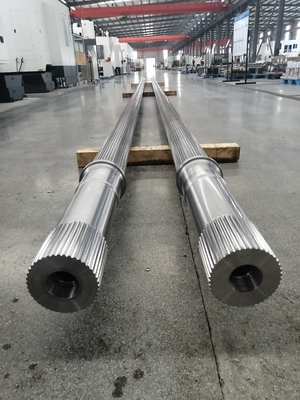

High Quality Spline Shaft For Germany Twin Screw Extruder 1
a.  WR9 with special treatment and involute form can be used under the circumstances of high torque, high torsion and
high load.

b. Nitrogen bearing Martensite stainless steel ,WR15E and WR30 can also be applied to make good toughness
and machine performance available. The performance parameters similar to the imported shaft but with more cost
efficient, the machining process is under accurate controlling to make sure the accuracy of groove depth and
distance, the smoothness of the surface, toughness and durability as well.



4. Torque of spline shaft


High Quality Spline Shaft For Germany Twin Screw Extruder 2



5. Types of shaft to choose:
    Single keyway

    Square keyslot

    High torque key button

    Dual keyslot
    Involute inner spline

    Round keyslot

    Rectangle spline

    Client requirements available
High Quality Spline Shaft For Germany Twin Screw Extruder 3

6. Factrory introduction:

Our factory is state-of-the art and spans over 20,000 square meters. The factory houses more than 130 sets of different domestic and foreign high precision production equipment, with the degree of numerical control up to 95%.
We have several slender axle lathes to ensure high quality products.


High Quality Spline Shaft For Germany Twin Screw Extruder 4


7. Why choose us?
(1) Total solution of highly wear-resistance and corrosion-resistance problems;
(2) Expert of engineering design and consulting,
(3) Advanced manufacturing capabilities and technology,
(4) Lean production management
(5) Top quality products with high cost performance



8. Packaging:

According to your order quantities and products sizes to choose the number of wooden boxes.

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,

f.  Sealing.


9. FAQ:



1.Q: Are you trading company or manufacturer?

A: We are factory.



2.Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients from domestic or abroad are warmly welcome to visit us.



3.Q: What makes you different with others?

A: Our Excellent Service For a quick, no hassle quote just send email to us we promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 19150954315, we will answer your questions immediately. 2) Our quick manufacturing time For Normal orders, we will promise to produce within40 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.



4. Q: What is your terms of payment ?

A: 1) T/T       2) L/C
