| Place of Origin: | China |
| Brand Name: | Joiner |
| Certification: | ISO9001 |
| Model Number: | ZSE87MX |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case Sea-worthy or export standard. |
| Delivery Time: | 40-50 days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200pcs/per year |
| Material: | WR15E WR30 40CrNIMoa | Type Of Extrusion: | Double |
|---|---|---|---|
| L/D: | 40:1 44:1 48:1 | Place Of Original: | China |
| Type: | Involute Inner Spline | Heat Treatment: | Vaccum Quenching |
| High Light: | 1.2343 Material Extruder Screw Shaft,High Torque Extruder Screw Shaft,Involute Inner Spline Extruder Shaft |
||

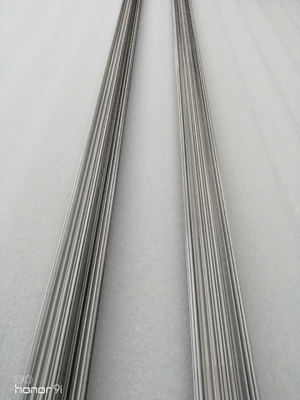

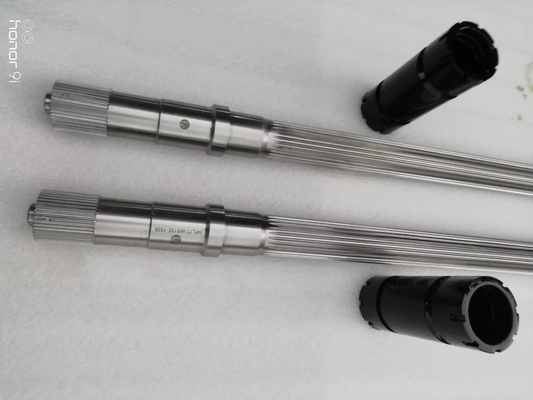

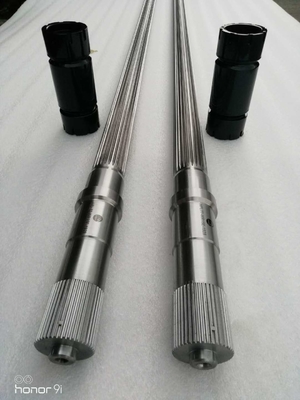

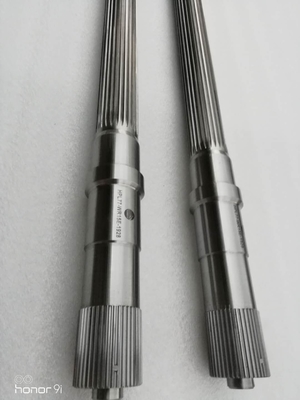

Extruder Shaft For ZSE87MX High Torque Screw Shaft 1.2343 Material
Production description:
| Product name: | Twin screw shaft | rand name: | Leistritz |
| Model number | ZSE87MX | Material | 1.2343 |
| Spline type | involute inner spline | Place of original | Sichuan, China |
| Size: | within 15000mm | Screw combination | Brick patern construction |
| Construction | With or without cooling system | L/D: | 40:1 / 44:1 / 48:1 |
We manufacture screw shafts for co-rotating twin screw extruders ranging Length within 15000 mm and over. With cooling system /without cooling system. Our manufacturing specializes in shafts for twin screw extruders and is optimized for flexible order handling.
Types of shaft:
Single keyway Square keyslot High torque key button Dual keyslot
Involute inner spline Round keyslot Retackle spline Client requirements available
Material choice:
WR15E WR30 40CrNiMo
| Ralloy WR15E | WR30 | 40CrNiMo |
|
Ralloy WR15E is a chromium-molybdenum-vanadium-slloyed steel which is characterized by: |
Ralloy WR30 is a high pressure nitriding iron-based Cr-Mo alloy Which is characterized by | 40CrNiMo i a kind of alloy constructional steel. |
| - Excellent tensile strength combined with good toughness | -High corrosion resistance | |
| -High thermal stability, high resistant to thermal shocks | -Excellent machinablity | |
| -Good high-temperature strength | -High dimensional stablity after heat treatment. | |
| -Good machinability and polishablity | -Excellent grinding and polishing ability to obtain optimal surface quality | |
| -Excellent through-hardening properties | -High durability by maximun hardness under static and dynamic demands | |
| -Excellent dimensional stability during hardening. | -Good wear resistance | |
| -High temper resistance up to 500 °C |
Packaging & Delivery
Packaging Details: Wooden case, Sea-worthy or export standard.
Port: SHENZHEN
Lead time: 40-50 days after order confirmation.
A: We are manufacturer.
A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients, from domestic or abroad, are warmly welcome to visit us
A: 1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 028 87226313, we will answer your questions immediately. 2) Our quick manufacturing time For Normal orders, we will promise to produce within 30 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.
A: 1) T/T payment; 2) LC;
