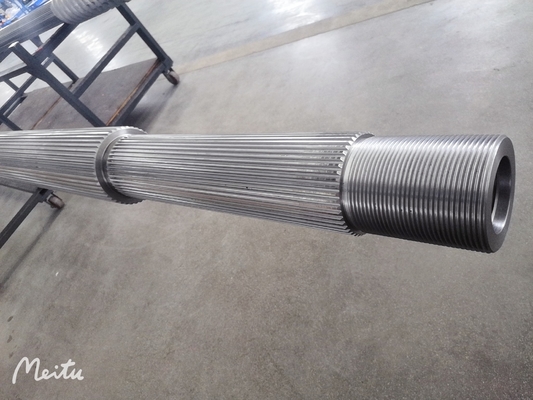

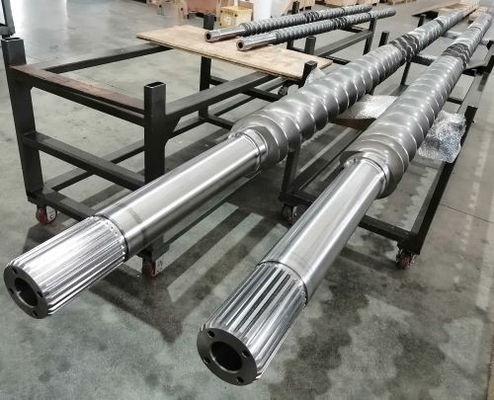

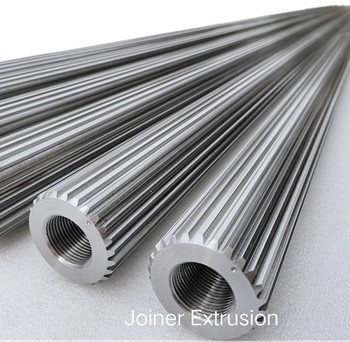

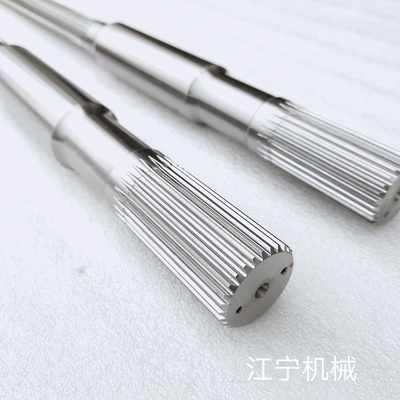

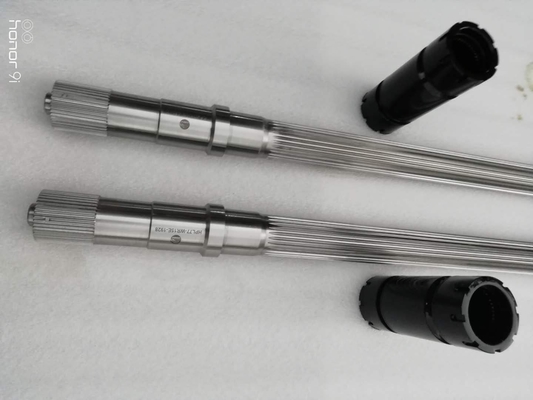

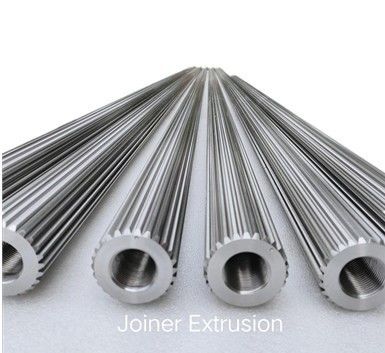

Screw Shafts and Elements Clextral BC82 Plastic Extruder in Petrochemical Industry

Parallel Twin Extruder Plastic Machinery Parts Screw Shaft and Elements Clextral BC82

Production description:

Production name:	Screw element	Model Number:	BC82
Extrusion equipment:	Clextral	Material	WR5
Place of Origin	SiChuan, China	Application	PE PP Plastic
Production ability	300m / Per month	Diameter	87mm

​
Our work range: screw φ 15.6mm~ φ500mm

We supply twin screw set for PP PE Plastic Cement fiber extrusion. The surface finishing is polishing can meet RA0.4. Inner spline precision can meet Gear precision level 6 which make seamless connection with each screws. And the bimetallic alloy material with soft core can protect the shaft. High torque high precision and with good wear resistance.

Co-rotating twin screw elements for
-APV -KOBE -OMC
-Buss -ICMA -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris

Quality Control

1. Materials control

1. All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.

2. The internal splines is checked by the spline plug to ensure interchangeability of the elements

3. All components are machined by CNC machines to ensure the shapes and tolerances of the elements

4. Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.

5. Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.

6. There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.

7. The modern management system can ensure the products 100% qualified and tracked.

Heat treatment by Ourself

As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of products, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.

Types of the Screw Segments

Convey Screw Segment
Mixing Screw Segment
Kneading Block & Disk
Transition Screw Element
Deep groove transfer element
Screw element for side feeder
1-flighted,2-flighted,3-flighted screw elements


​
​
Screw Element Materials:
For wear application:
* Tool Steel : W6Mo5Cr4V2;
* PM-HIP material : SAM10,SAM26,SAM39,CPM10V,CPM9V
For corrision application:
* Nitrided Steel: 38CrMoAI;
* PM-HIP material : SAM26,SAM39,CPM10V,CPM9V
For wear and corrision application:
* PM-HIP material:SAM26,SAM39,CPM10V,CPM9V
Other materials:
Stainless Steel: 316L,C276 etc.
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.

Quality Control
1.Materials Control:
All the materials are purchased from the domestic brands of Eurpean twin screw specialty materials suppilers, which tested by elemental analysis and metallurgical inspections to ensure the quality.
2.The internal splines is checked by the spline plug to ensure interchangeability of the elemets
3.All components are machined by CNC machines to ensure the shapes and tolerances of the elements.
4.Adopt the European high speed steel powder processing technology, and to the heat treatment according to the strict heat treatment process to ensure the wear and corrosion performance same as the foreigh brands.
5.Professioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services
6.There are various prepared technical information and fitxtures for the various brands extruders to ensure the timely lead time. The common components have a lot of stock,even the new one, it can be delivered within 45days.
7.The modern management system can ensure the product 100% qualified and tracked.

Our strengths are based on many years experience supplying the following:
* Competitive costs per unit of production
* Fast turn round for collection and delivery on refurbished parts
* Parts available from stock for a wide range of extruder makes
* Comprehensive inspection procedure on all parts prior to dispatch
* A time proven quality service
* Latest manufacturing techniques and metallurgy, ensuring consistent and reliable performance of parts
* Customized solutions to meet specific needs.

Heat Treatment by Ourself
As we all know,heat treatment is very important in the screw production process,In order to ensure the quality of products ,Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China,We are the only company that does the heat treatment by ourselves and the heat treatment of screw elements made by Nanjing factory is processed by outsiders, so the quality of products can not only be completely guarantee.

Packaging details:

Packing Details : Foam cotton,wooden case
Port: Shenzhen
​

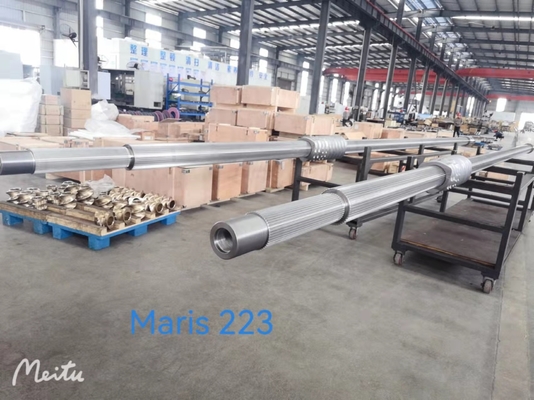

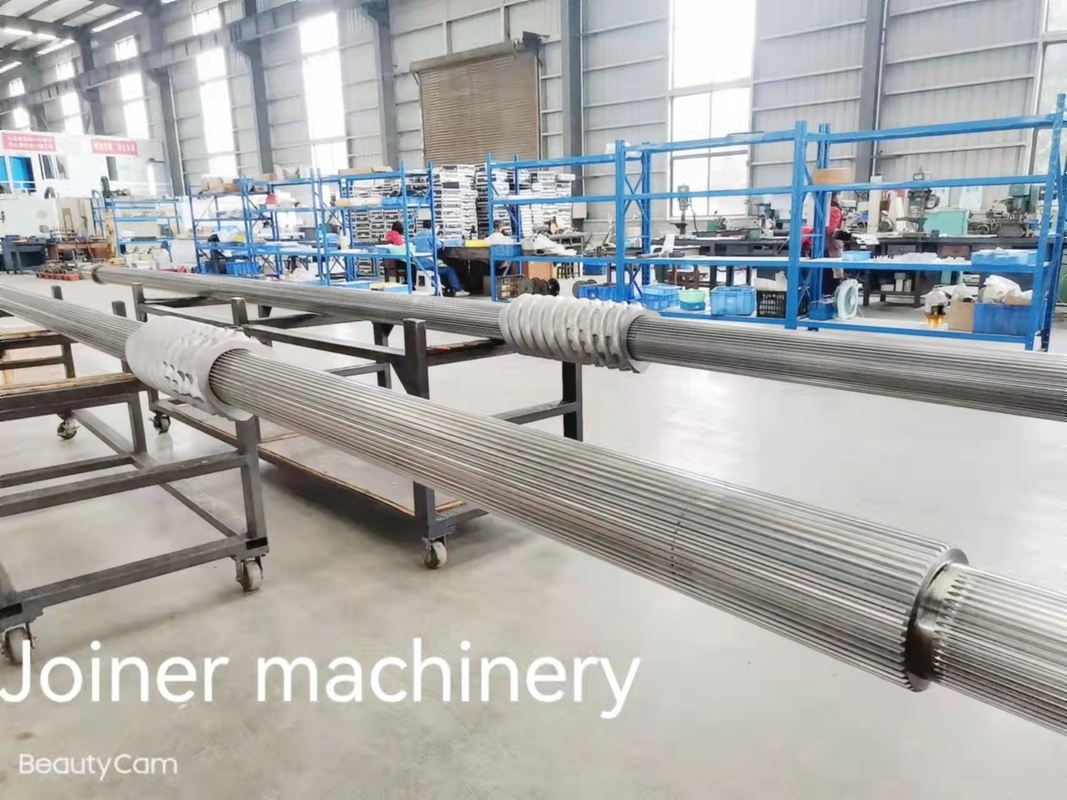

Workshop
​
​​​​​

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to

Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients,
from domestic or abroad, are warmly welcome to visit us

Q: What makes you different with others?

A: 1) Our Excellent Service For a quick, no hassle quote just send email to us We

promise to reply with a price within 24 hours - sometimes even within the hour. If you
need an advice, just call our export office , we will answer your
questions immediately. 2) Our quick manufacturing time For Normal orders, we will
promise to produce within 30 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.
