|Place of Origin:||Sichuan,China|
|Minimum Order Quantity:||1 piece|
|Delivery Time:||30-60 days|
|Payment Terms:||T/T ,L/C|
|Material:||WR5/W6Mo5Cr4V2/1.2379/1.4114/Nickel Alloy||Heat Treatment:||Vacuum Quenching|
|Surface Treatment:||Sand Blast/polishing||Hardness:||HRC58-62|
|Screw Type:||Twin Screw||Application:||Twin Screw Extruder|

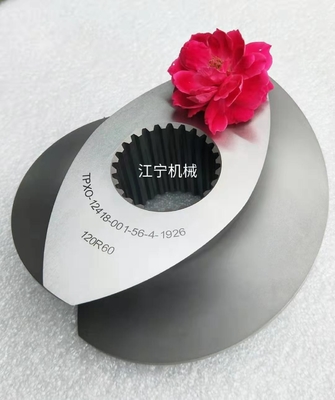

LCM230 Extruder High Wear And Corrosion Screw Elements Used For Making PP And PE
|Surface Treatment||Polishing/Sand Blasting|
|Place of Origin||Sichuan , China|
|Screw Range||Φ 15.6 - Φ 430mm|
(2)Co-rotating twin screw elements for
|Leistritz: ZSE-MICRO||Theysohn: TSK|
|JSW: TEX||SM: TEK-HS|
|Feddem: FED-MTS||Fessia Macross: NRII|
|TOSHIBA: TEM||USEON: TDS|
|Labtech: LTE||SHIZHOU: MTE|
1. For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
2. For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V
3. For wear and corrision application:
PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4. Other Materials:
Stainless Steel: 316L, C276 etc.
(4)Types of the Screw Segments

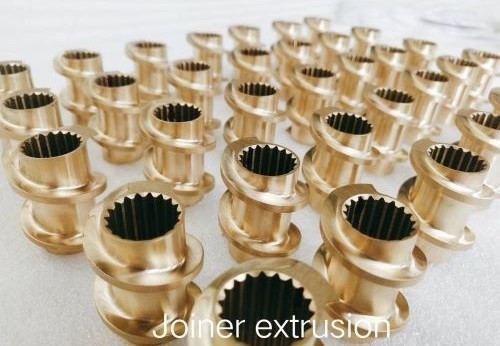

|Convey Screw Segment||Convey Screw Segment|

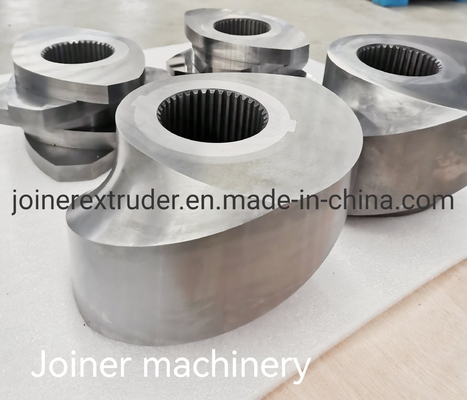

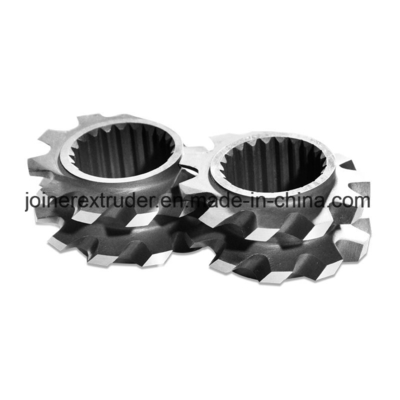

|Kneading Block & Disk||Transition Screw Element|
|Deep groove transfer element||Screw element for side feeder|
|1-flighted 2-flighted 3-flighted screw elements||Special Screw Element|

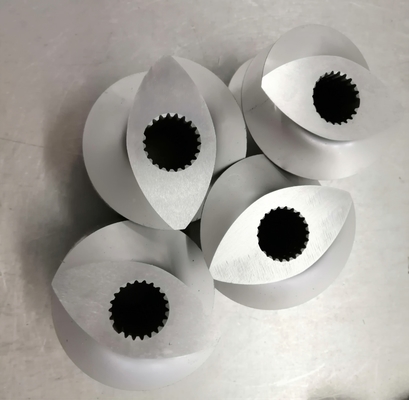

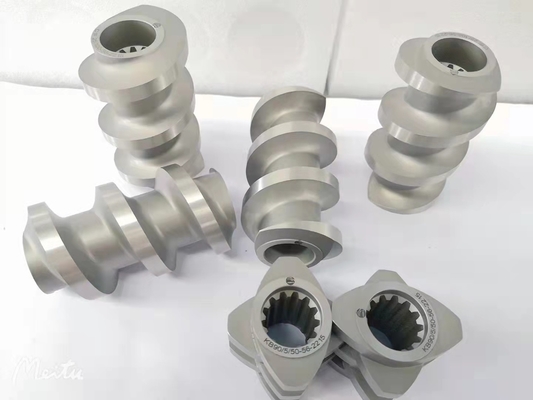

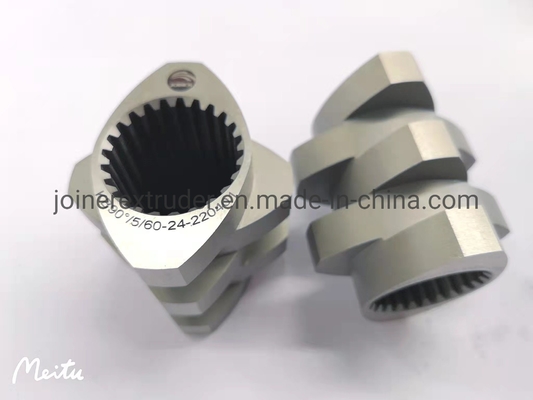

(5)Standerd Screw Element and Kneading Block
1. Materials control:
1. All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.
2. The internal splines is checked by the spline plug to ensure interchangeability of the elements
3. All components are machined by CNC machines to ensure the shapes and tolerances of the elements
4. Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.
5. Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
6. There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.
7. The modern management system can ensure the products 100% qualified and tracked.
2. Heat treatment by Ourself
As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of products, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.
|Temper Furnace||Vaccum Quencher|
3. Product accuracy
There are some differences between Joiner Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.
(6) Production and Inspection of Equipment
We also have advantages in production equipment and inspection equipment.
Joiner has 70 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.
(7) Packing & Delivery
Packing Details : Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts
Delivery Details: Standard export packing
Delivery Time: Shipped in 30 days after payment for extruder screw and barrel.
To product antirust processing ,and then use the paper package,bubble,fixed in the wooden case,after confirm the delivery.
A: We are factory.
A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to
A: 1) Our Excellent Service For a quick, no hassle quote just send email to us We
A: 1) T/T payment; 2) LC;
If you have another question, pls feel free to contact us as below:
Contact Person: Jessica.Zhang
