CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments
CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments
CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments
Product Details:
Place of Origin: China
Brand Name: Joiner
Certification: ISO9001 2015
Model Number: 207
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case Sea-worthy or export standard
Delivery Time: 35-45 days
Supply Ability: 300m / month
Contact Now
Detailed Product Description
Material: For Chemical Extrusion Heat Treatment: Vacuum Quenching
Surface Treatment: Sand Blast/polishing Hardness: HRC58-62
Application: Twin Screw Extruder
High Light:

CPM240 Extruder Screw Elements

,

Polishing Extruder Screw Segments

Mixing Paddles And Kneading Block Discs for Twin Screw Extruder



(1)Quick Details

 Screw Diameter  207mm CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 0
 Screw Design  Double-Screw
 Hardness  58-60HRC
 Brand Name  Jioner
 Surface Treatment  Polishing/Sand Blasting
 Materials  SAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
 Place of Origin  Sichuan , China
 Warranty  1 Years
 Screw Range  Φ 15.6 - Φ 430mm
Suit For  Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion





























(2Extruder Screw Materials:

1. For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V

2. For corrision application:

Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V

3. For wear and corrision application:
PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4. Other Materials:
Stainless Steel: 316L, C276 etc.



(3)Screw elements include:
Single flight, twin flight and tri-lobe elements
Kneading blocks and single

mixing paddles or discs

High volume intake elements
Conveying elements
Compression elements
Reverse elements
Flow splitting elements to mix different viscosities
Transition elements from single flight to twin flight

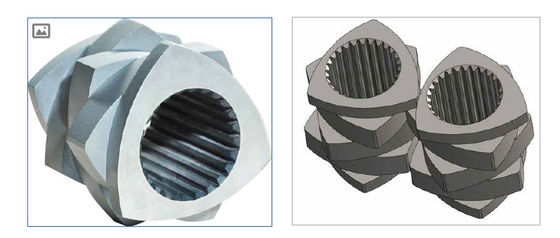

(4)Standerd Screw Element and Kneading Block

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 1



(5)Quality Control


1. Materials control:

1. All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.

2. The internal splines is checked by the spline plug to ensure interchangeability of the elements

3. All components are machined by CNC machines to ensure the shapes and tolerances of the elements

4. Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.

5. Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.

6. There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.

7. The modern management system can ensure the products 100% qualified and tracked



Other Products of Our Company

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 2 CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 3 CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 4
Barrel  Shaft Side Feeder



2. Heat treatment by Ourself

As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of products, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 5

 3. Product accuracy

There are some differences between Joiner Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.



(6) Production and Inspection of Equipment

We also have advantages in production equipment and inspection equipment.

Joiner has 70 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 6

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 7



(7) Packing & Delivery

Packing Details : Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts

Delivery Time: Shipped in 30 days after payment for extruder screw and barrel.

To product antirust processing ,and then use the paper package,bubble,fixed in the wooden case,after confirm the delivery.

CPM240 Twin Screw Extruder Screw Elements And Kneading Block Screw Segments 8
