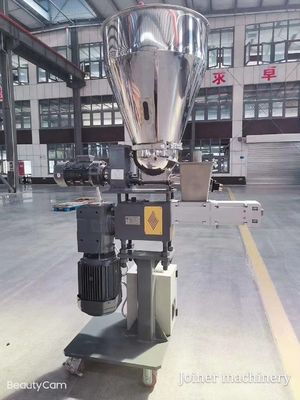

PP ABS Twin Screw Extruder Side Feeder KY75/65 300rpm For Petrochemical Industry

PP ABS Joiner Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output For Petrochemical Industry

CWJ45 Technical Specification

Screw Diameter(mm)	Φ45.5mm
L/D	10: 1
Power(kw)	3KW
Type of drive	SEW Motor
Sections of Barrel	2 Sections
Length of Screw	450 mm
Output Screw Speed(rpm)	300 rpm
Load Capacity (kg/h)	100 kg/h	Dimension: 1300×650×1230(mm) (can adjustable height)

The composents of CWJ45 Side Feeder

Mark	Part Name	Qty(Pcs)	Function
1	SEW Motor	1	Driving System
2	Gear Box	1	Transmission System
3	Hopper	1	Feeding
4	Screw Section	2	Mixing and Conveying the filler
5	Barrel Section	2	Carry the screw shaft and melt the material
6	Bracket	2	Supporting the side feeder

Basic information about our products

JOINER employs segmented screws with a selfwiping profile to provide poptimum feeding properties for a wide range of raw materials such as fillers,fiberglass,

talcum powder,calcium carbonate and carbonate and most inorganic materials.

Side feeders are used for the following reasons

1. Reduction of wear costs in the melting section of the main screw and barrels
2· More gentle processing of fillers
3· Increase in throughput
4· Increase in quality through the enough fixing
5· Lower the cost

Our side feeders features

1· Very durable thanks to its durable integral liner inside barrels
2· The tightly intermeshing co-rotating segments with various pitch have an improved conveying be haviour and ensure the precision (long GF±5%,short GF±2%) and output (caco3 550Kg/h,GF 500Kg/h)
3· More human centered design,ease of operation.for example the glass window,on the splined sleeve, flat screw head ,the adjustable support and the drawer for clean up the leak .Can designed based on user requests.

All Joiner Screw elements are manufactured using only top quality wear and corrosion resistant steels.
Tooling steel,Nitriding, stainless steels and alloys or specially imported treated materials are all available
depending on the customers specific requirements.

Side Feeder for

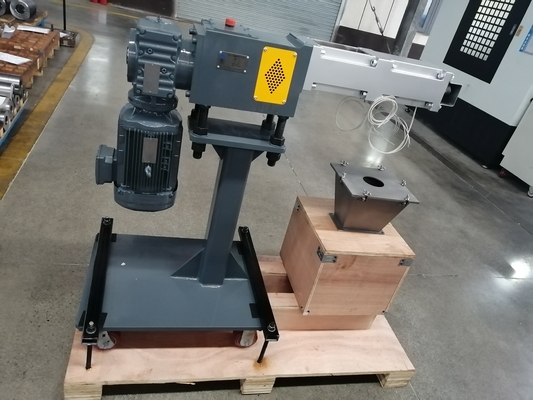

Packing and Delivery

Packing Details: Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts
Delivery Details: Standard export packing
Delivery Time: Shipped in 45 days after payment for Side Feeder.
