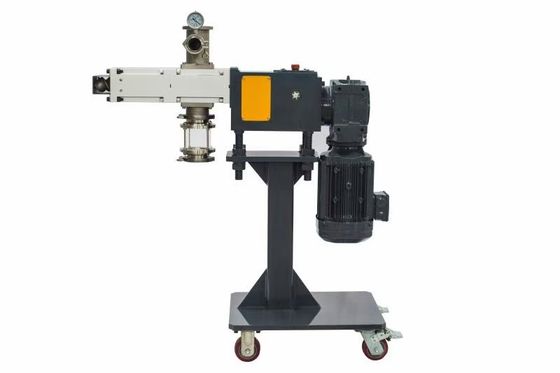

PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner

PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner

PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner
PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner
PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner
Product Details:
Place of Origin: CD Sichuan China
Brand Name: Joiner
Certification: ISO9001-2015
Model Number: CWJ 35
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts
Delivery Time: 45 DAYS
Payment Terms: L/C,T/T
Supply Ability: 500 SET PER YEAR
Contact Now
Detailed Product Description
Screw Diameter: 35mm Lenghth Of Screw: 495
Suitble For Extruder Size: KY35 L/D: 10:1
Motor Power: 202Kw Reducer Ratio: 10:1
Screw Speed(rpm): 300 Capacity(kg/h): GF 3-6mm,1250 Talc Powder 70/3000 Talc Powder 30
Others: Other Motor Sizes And Gearbox Ratios Are Also Available.
High Light:

PP Extruder Side Feeder

,

300rpm Twin Screw Feeder

,

35mm Screw Extruder Side Feeder

PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner



CWJ45 Technical Specification



Screw Diameter(mm) Φ45.5mm PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner 0
L/D 10: 1
Power(kw) 3KW
Type of drive SEW Motor
Sections of Barrel 2 Sections
Length of Screw 450 mm
Output Screw Speed(rpm) 300 rpm
Load Capacity (kg/h) 100 kg/h Dimension:
1300×650×1230(mm)
(can adjustable height)



The composents of CWJ45 Side Feeder



Mark Part Name Qty(Pcs) Function PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner 1
1 SEW Motor 1 Driving System
2 Gear Box 1 Transmission System
3 Hopper 1 Feeding
4 Screw Section 2 Mixing and Conveying the filler
5 Barrel Section 2 Carry the screw shaft and melt the material
6 Bracket 2 Supporting the side feeder


Basic information about our products


JOINER employs segmented screws with a selfwiping profile to provide poptimum feeding properties for a wide range of raw materials such as fillers,fiberglass,

talcum powder,calcium carbonate and carbonate and most inorganic materials.

Side feeders are used for the following reasons


1. Reduction of wear costs in the melting section of the main screw and barrels
2· More gentle processing of fillers
3· Increase in throughput
4· Increase in quality through the enough fixing
5· Lower the cost


Our side feeders features


1· Very durable thanks to its durable integral liner inside barrels
2· The tightly intermeshing co-rotating segments with various pitch have an improved conveying be haviour and ensure the precision (long GF±5%,short GF±2%) and output (caco3 550Kg/h,GF 500Kg/h)
3· More human centered design,ease of operation.for example the glass window,on the splined sleeve, flat screw head ,the adjustable support and the drawer for clean up the leak .Can designed based on user requests.


All Joiner Screw elements are manufactured using only top quality wear and corrosion resistant steels.
Tooling steel,Nitriding, stainless steels and alloys or specially imported treated materials are all available
depending on the customers specific requirements.



Side Feeder for



W&P: ZSK-MC Berstorff: ZE
Leistritz:ZSE -MICRO Theysohn: TSK
Maris: TM-W APV: MP65
JSW: TEX Feddem: FED-MTS
Fessia Macross: NRII TOSHIBA: TEM
Labtech: LTE USEON:TDS
SHIZHOU: MTE KEYA, LANTAI

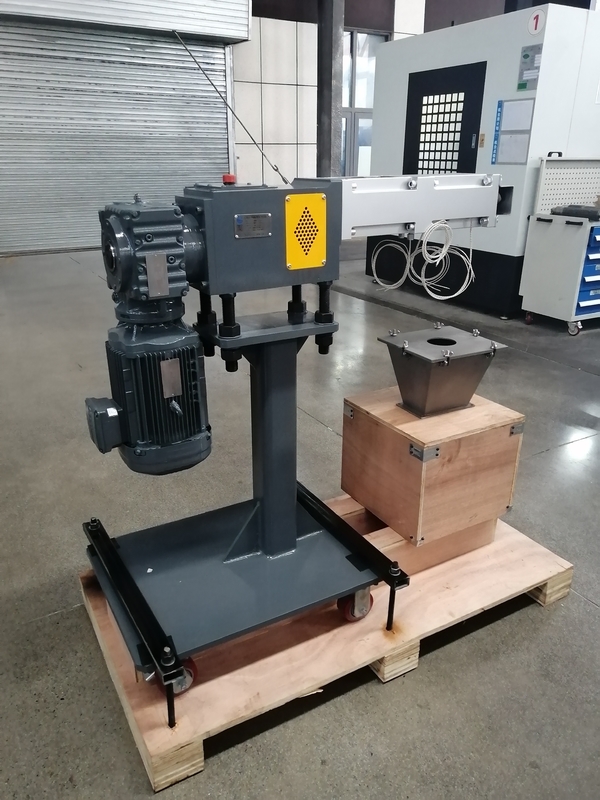

Packing and Delivery


Packing Details: Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts
Delivery Details: Standard export packing
Delivery Time: Shipped in 45 days after payment for Side Feeder.


PP ABS Twin Screw Extruder Side Feeder KY75/65 Type 300rpm Output By Joiner 2
