| Place of Origin: | Sichuan, China |
| Brand Name: | JOINER |
| Certification: | ISO9001:2015 |
| Model Number: | As request |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 70 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 pieses/month |
| Inner Material: | WR13, A101, X260 Etc | Outer Material: | 45#, 42CrMo Etc |
|---|---|---|---|
| Screw Design: | Double-Screw | Condition: | New |
| Certification: | ISO9001:2015 | Warranty: | 6 Months |
| Technics: | CNC Machining | Standard: | DIN, GB, Etc. |

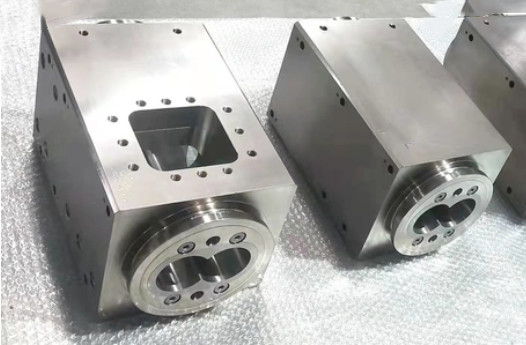

| High Light: | 42CrMo Extruder Machine Parts,CNC Machining Closed Barrels,Twin Srew Extruder Closed Barrels |
||
1. Range of work:
Barrels are used as an important part for extruder accessory. It is widely used in various industries. Such as XPS extruder, PS granulator, PE pipe extrusion machine. Because of the difference of raw materials, the requirements for the Barrels are different. For example, when some glass fiber materials are extruded, the wear is larger and the gap between the screw and the Barrels is strictly required. the balance of wear resistance and cost is need to be taken full consideration.
We manufacture barrels for co-rotating twin screw extruders ranging from 15.6 mm to 400 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.
2. Standard Barrel Parameter Table
|
Standard Barrel Parameter Table (selection table) |
|||
|
Model |
Size(mm) W.H.L |
Hole Diameter(mm) |
Center Distance(mm) |
|
JN-20 |
115.105.132 |
Φ23 |
18.4 |
|
JN-30 |
135.115.120 |
Φ30.6 |
26 |
|
JN-35 |
140.120.140 |
Φ36 |
30 |
|
JN-36 |
160.140.150 |
Φ36 |
30 |
|
JN-40 |
175.145.160 |
Φ41.6 |
34.5 |
|
JN-50 |
190.150.190 |
Φ51 |
42 |
|
JN-52 |
200.155.210 |
Φ52 |
43 |
|
JN-53 |
210.160.220 |
Φ53.3 |
48 |
|
JN-58 |
220.175.240 |
Φ58 |
48 |
|
JN-60 |
210.170.240 |
Φ60 |
52 |
|
JN-65 |
210.170.240 |
Φ63 |
52 |
|
JN-75 |
260.200.290 |
Φ71.8 |
60 |
|
JN-85 |
280.215.320 |
Φ81.9 |
67.8 |
|
JN-92 |
310.240.360 |
Φ92 |
78 |
|
JN-95 |
310.240.360 |
Φ94 |
78 |
|
JN-110 |
330.240.420 |
Φ109 |
91.5 |
|
JN-125 |
390.290.500 |
Φ125 |
98 |
|
JN-135 |
370.300.410 |
Φ134 |
110 |

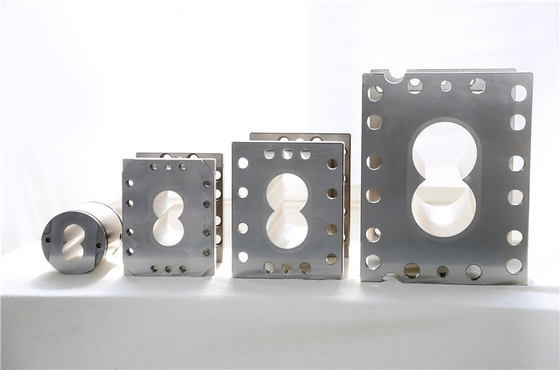

3. Types of Barrels:
Feeding barrel
Solid barrel

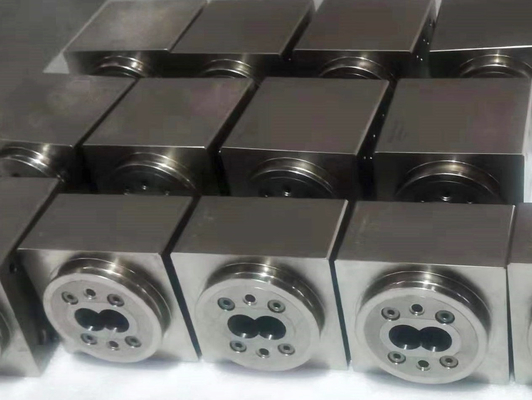

Closed barrel Barrels with inners
Vent barrel
Combi barrel
Extended degassing barrel
Combi barrel with backward venting
4. Example water channel Co-rotating twin screw barrels:
5. Materials:
6. Production and Inspection of Equipment
We also have advantages in production equipment and inspection equipment.
Joiner has over 150 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.
7. Packing Details:
According to your order quantities and products sizes to pack:
1. Rust-proof oil processing,
2. Oiled paper packages,
3. Bubble wrap package,
4. Special foam packaging,
5. Packing,
6. Sealing.
Contact Person: Jessica.Zhang
Tel: 18380438354
