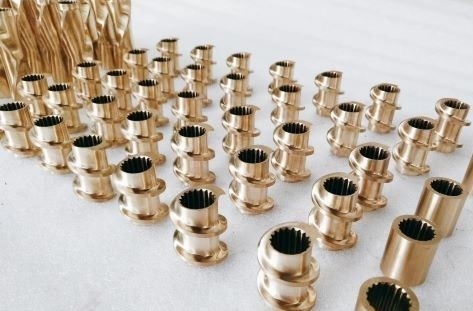

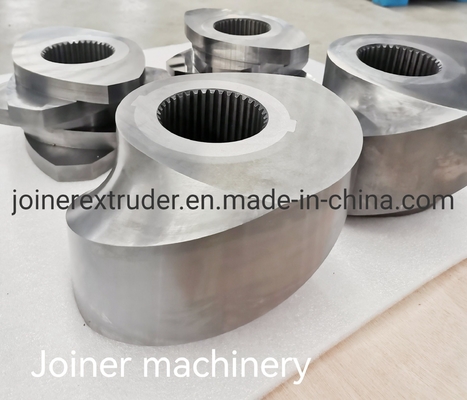

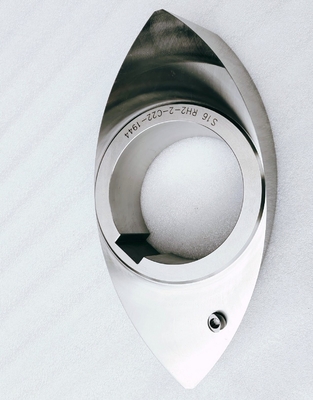

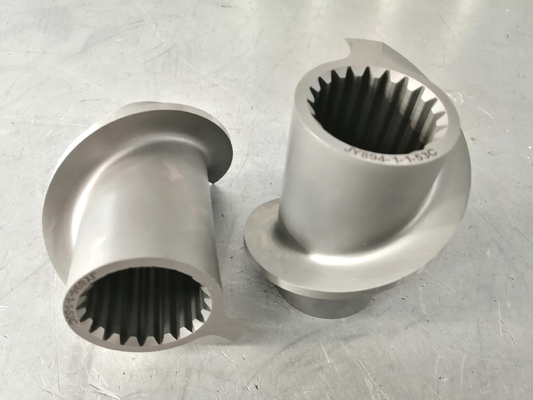

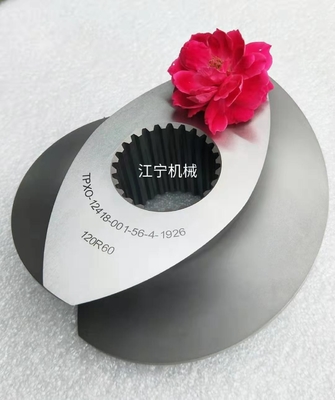

ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block

ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block

ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block
ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block
ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block
Product Details:
Place of Origin: Sichuan,China
Brand Name: Joiner
Certification: ISO9001
Model Number: 90°/7/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10
Packaging Details: Wood
Delivery Time: 30-60 days
Payment Terms: T/T ,L/C
Supply Ability: 5000piece/year
Contact Now
Detailed Product Description
Material: SAM10/CPM10V Surface Treatment: Sand Blast
Application: Twin Screw Extruder Service Provided: Video Technical Support
Hardness: HRC 58-62 Warranty: 6 Months
Standard: DIN, GB, Etc. Technics: Machining
Flight: Double Flighted Feature: Corrosion Resistance
High Light:

ZE77 Involute Inner Spline

,

Neutral Extruders Screw Elements

,

Extruders Screw Kneading Block

Corrosion Resistance ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block

Screw elements are the main working parts for twin screw extruder which determined the quality and output of plastic products. With high quality, the screw elements assure plastic molecular mixing, cutting, spreading as well as reacting among themselves etc. Extremely high self cleaning performance assure the high quality of the whole production line, for this, our company combiend our experience for years, the merits about foreign countries and the customer's use,then take them into action, design and produce all kinds of suitable processing screw elements.



With a strong emphasis on producing only the highest quality with exceptional customer-oriented service, Joiner Machinery is able to provide a first-class service that is supportive to its global customers and strives to become a core extrusion parts and production enterprise with world influence.



We manufacture screw and kneading segments for co-rotating twin screw extruders ranging from 15.6mm to 400mm and over.
Our manufacturing specializes in segmented screws for twin screw extruders and is optimized for flexible order handling.

1. Details of Kneading Block:

90° /7/30 kneading block
Angle   90° ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block 0
Layers   7
Length   30mm
Tooth Z 24
Pression angle a 30°
Standard   DIN5480
D size Dee Φ24.75
D size Die Φ22.65


2 Screw Materials:
1). For wear application:
     Tool Steel : W6Mo5Cr4V2;
     PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
2). For corrision application:
     Nitrided Steel: 38CrMoAI;
     PM-HIP material : SAM26 SAM39 CPM10V CPM9V
3). For wear and corrision application:
     PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4). Other Materials:
     Stainless Steel: 316L, C276 etc.

ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block 1


3. Types of block
    30 degree kneading block
    45 degree kneading block
    60 degree kneading block
    90 degree kneading block
    3KB kneading block
    Reverse 45 degree kneading block


ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block 2

4. Making process

ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block 3



5. Quality Control
1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.
2). The internal splines is checked by the spline plug to ensure interchangeability of the screw elements;
3). All components are machined by CNC machines to ensure the shapes and tolerances of
screw elements;
4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.
5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.
7). The modern management system can ensure the products 100% qualified and tracked

6. Heat treatment
    As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of
screw elements, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.


7. Production and Inspection of Equipment
    We also have advantages in production equipment and inspection equipment.
Joiner has over100 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.


8. Packing

     According to your order quantities and products sizes to choose wooden boxes or cartons to pack:

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,

f. Sealing.


 ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block 4


 8. Products we produce:

 ZE77 Involute Inner Spline Neutral Extruders Screw Elements Kneading Block 5
