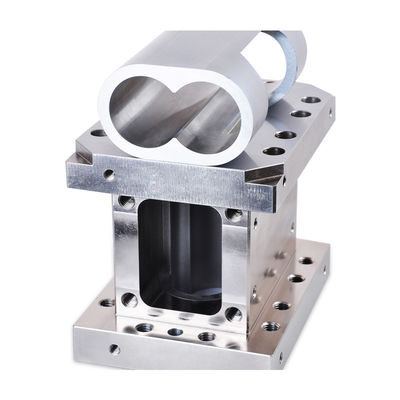

CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder

CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder

  • CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder
  • CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder
  • CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder
  • CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder
CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder
Product Details:
Place of Origin: Sichuan, China
Brand Name: JOINER
Certification: ISO9001:2015
Model Number: As request
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 70 days
Payment Terms: L/C, T/T
Supply Ability: 100 pieses/month
Contact Now
Detailed Product Description
Inner Material: Cr12MoV, A101, X260 Etc Outer Material: 45#, 42CrMo,38CrMoala, Etc
Screw Design: Double-Screw Condition: New
Certification: ISO9001:2015 Warranty: 6 Months
Standard: GB, DIN, Etc. Technics: Machining
High Light:

Combine Extruder Barrel Elements

,

Rectangular Openings Extruder Barrel Elements

,

CNC Machining Extruder Barrel Elements

Precision CNC Machining Accuracy Extruder Parts Rectangular Openings Combine Barrel

1. Standard Barrel Parameter Table



Standard Barrel Parameter Table (selection table)
Model Size(mm) W.H.L Hole Diameter(mm) Center Distance(mm)
JN-20 115.105.132 Φ23 18.4
JN-30 135.115.120 Φ30.6 26
JN-35 140.120.140 Φ36 30
JN-36 160.140.150 Φ36 30
JN-40 175.145.160 Φ41.6 34.5
JN-50 190.150.190 Φ51 42
JN-52 200.155.210 Φ52 43
JN-53 210.160.220 Φ53.3 48
JN-58 220.175.240 Φ58 48
JN-60 210.170.240 Φ60 52
JN-65 210.170.240 Φ63 52
JN-75 260.200.290 Φ71.8 60
JN-85 280.215.320 Φ81.9 67.8
JN-92 310.240.360 Φ92 78
JN-95 310.240.360 Φ94 78
JN-110 330.240.420 Φ109 91.5
JN-125 390.290.500 Φ125 98
JN-135 370.300.410 Φ134 110



CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder 0



2. Co-rotating twin screw barrels for:



Keya KOBE Buhler
Berstorff Theysohn Toshiba
Buss Maris Labtech
CPM Leistritz APV
JSW Lantai Etc.



3. Rang of work: Diameter of 15.6mm-400mm



We manufacture barrels for co-rotating twin screw extruders ranging from 15.6 mm to 400 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.



CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder 1



CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder 2

4. Professional monitoring equipment guarantee

We have three coordinate detectors, two dimensional image measuring instruments, a metallographic analyzer, an ultrasonic flaw detector, an element analyzer and more than 10 kinds of advanced detection equipment, which guarantees its quality stability!

CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder 3


5. Packing Details:



According to your order quantities and products sizes to pack:

1. Rust-proof oil processing,

2. Oiled paper packages,

3. Bubble wrap package,

4. Special foam packaging,

5. Packing,

6. Sealing.



6. Our company:



     Joiner Machinery Co., Ltd. is a professional research and manufacturing enterprise working in the extrusion field. The name JOINER stands for join in extruder and JOINER is your best partner in extrusion technology. With nearly 20 years of research and development and production experience in the components of twin-screw extruder, JOINER supply screw elements, barrels, shafts, side feeders and customized solutions for extruder makers and users home and abroad.

    JOINER has been certified to ISO9001 and is recognized as a top supplier by renowned customers.Through close working relationships with our customers we have been able to fulfill their different requirements. Flexibility enables us to design and manufacture standard and bespoke components for unique applications.

CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder 4



7. Service Network Assurance



    We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.



8. FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients, from domestic or abroad, are warmly welcome to visit us.

Q: What makes you different with others?

A: 1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 028 87226313, we will answer your questions immediately.

   2) Our quick manufacturing time For Normal orders, we will promise to produce within 30 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.

Q: What is your terms of payment ? A: 1) T/T 2) L/C;

If you have another question, pls feel free to contact us.





9. Types of barrel we produce:



CNC Machining Rectangular Openings Combine Extruder Barrel Cylinder 5
